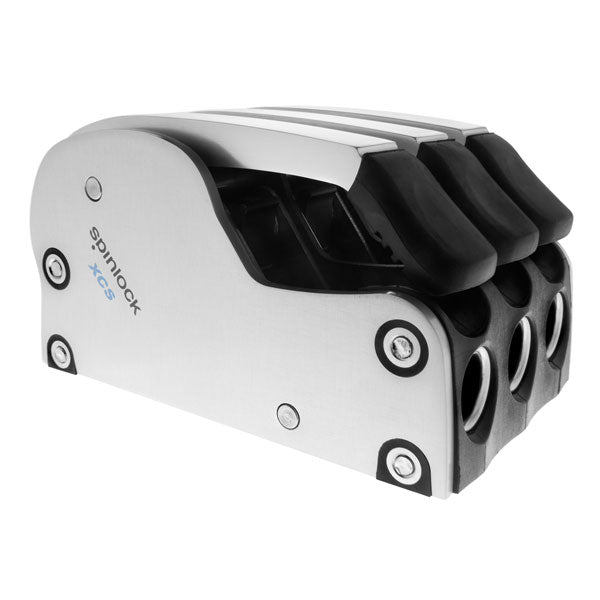

XCS Triple Rope Clutch, 5/16" - 9/6" (8mm - 14mm) , Silver Alloy Body

XCS Clutch

The XCS clutch offers a range of quality finished to match your deck or rig.

• Aluminium sides for sustained higher load operation
• Choose XCS when the mounting location requires extra durability, such as mast mounting, when matching surface finishes for aesthetics
• Mid to higher load rope holding
• Reliable all around performance
• Available in white coated, black anodised or silver polished alloy
• XCS0610 for best performance on smaller diameter lines
• XCS0814 for best performance across the rope range
• Ceramic Coated CAM and Base available for consistent holding & performance on modern lines
• Extruded alloy handle with soft end grip
• Secure handle locking in open and closed position
• Easy access to fasteners
• Handle labels supplied

Specifications:

XCS0610

• Lines: 1/4" - 3/8" (6mm - 10mm)
• Loads up to 2200 lbs (1000kg)

• Lines: 5/16" - 9/16" (8mm - 14mm)
• Loads up to 2200 lbs (1000kg)

• For 6-10mm lines and optimised for 8-10mm lines. Strongly recommended for high strength small diameter line. To upgrade from XCS0814, fit CAM-0610.

• Side Mounting is usally the neatest solution for spars, side decks and coamings.
