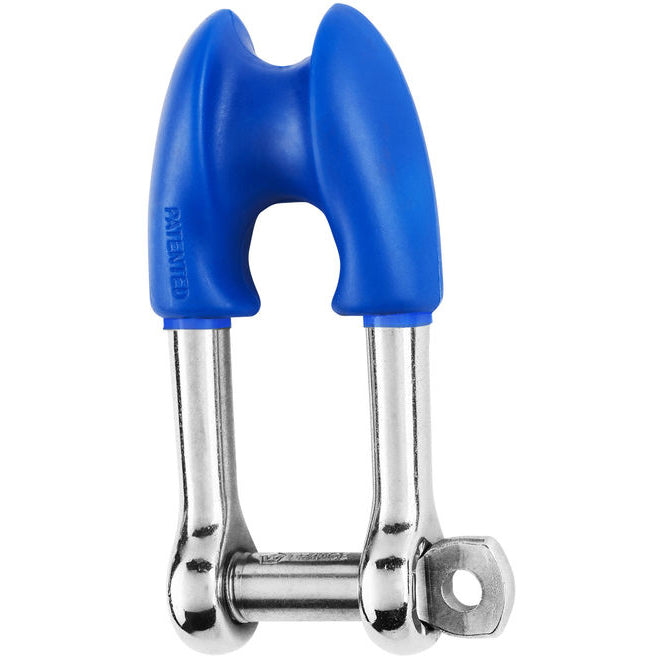

Wichard Thimble Shackle, Captive Pin - 5/16" (8 mm) Pin
Wichard Thimble Shackle, Captive Pin - 5/16" (8 mm) Pin
SKU:W1494
Regular price
$87.98 USD
Regular price
MSRP:$103.50 USD
Sale price
$87.98 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
- Thimble shackle with captive pin forged in grade 316L stainless steel
- Allows to spliced a rope without adding an additional thimble
- With the captive pin, no risk to lose the pin
- Outstanding working and breaking loads
Applications: Mainsheet Halyards; Max rope size: 12 mm
| Specifications | ||
| Materials | 316 stainless steel grade | |
| Working load | 1000 kg | 2200 lb |
| Breaking load | 3000 kg | 6610 lb |
| Weight | 78 g | 0.172 lb |

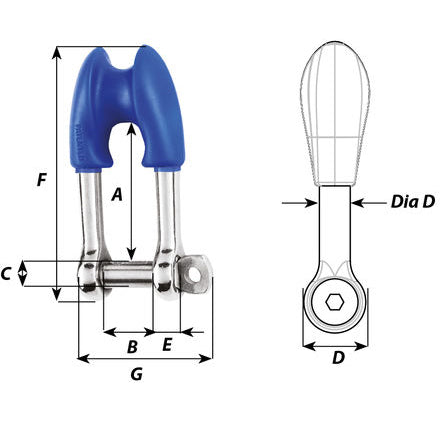

| A | 41 mm | 1 39/64" |
| B | 16 mm | 5/8" |
| C | 8 mm | 5/16" |
| D | 16 mm | 5/8" |
| D diameter | 8 mm | 5/16" |
| E | 7 mm | 9/32" |
| F | 76 mm | 2 63/64" |
| G | 42 mm | 1 21/32" |
