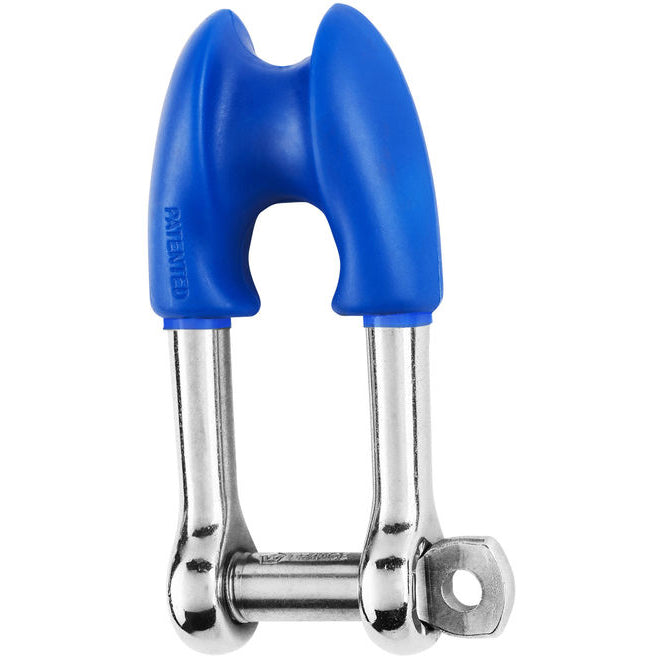

Wichard Thimble Shackle, Captive Pin - 13/32" (10 mm) Pin
Wichard Thimble Shackle, Captive Pin - 13/32" (10 mm) Pin
SKU:W1495
Regular price
$136.41 USD
Regular price
MSRP:$160.48 USD
Sale price
$136.41 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
- Thimble shackle with captive pin forged in grade 316L stainless steel
- Allows to spliced a rope without adding an additional thimble
- With the captive pin, no risk to lose the pin
- Outstanding working and breaking loads
Applications: Mainsheet Halyards; Max rope size: 16 mm

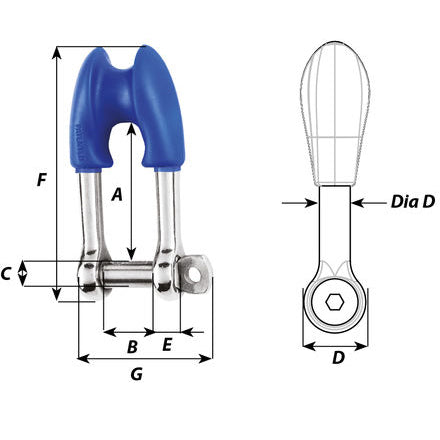

| Specifications | ||
| Materials | 316 stainless steel grade | |
| Working load | 1520 kg | 3350 lb |
| Breaking load | 5000 kg | 11020 lb |
| Weight | 146 g | 0.322 lb |
| A | 51 mm | 2 1/64" |
| B | 20 mm | 25/32" |
| C | 10 mm | 25/64" |
| D | 20 mm | 25/32" |
| D diameter | 10 mm | 25/64" |
| E | 9 mm | 23/64" |
| F | 95 mm | 3 47/64" |
| G | 54 mm | 2 1/8" |
