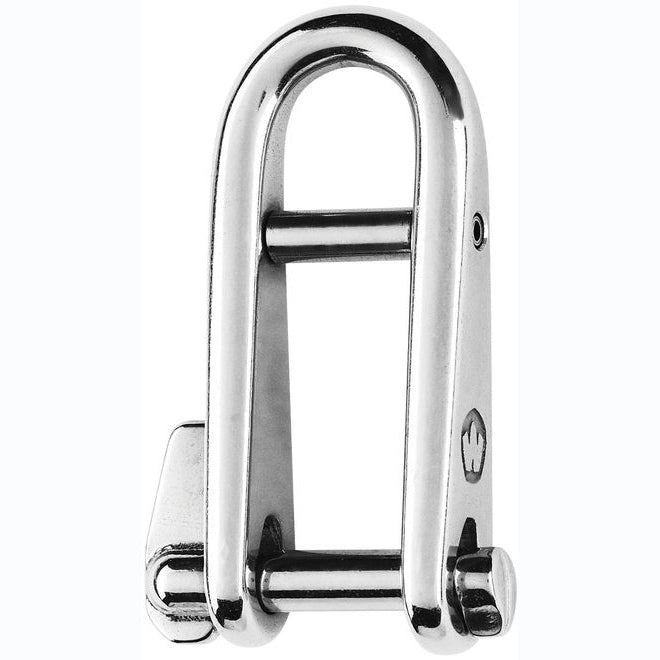

Wichard 5/16" Key Pin Shackle with Bar
Wichard 5/16" Key Pin Shackle with Bar
SKU:W81434
Regular price
$88.61 USD
Regular price
MSRP:$104.25 USD
Sale price
$88.61 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
- Key pin shackle forged in grade 316L stainless steel
- Opening and closing is done simply by rotating the pin half a turn
- No risk to lose the pin as it remains attached
- Outstanding working and breaking loads

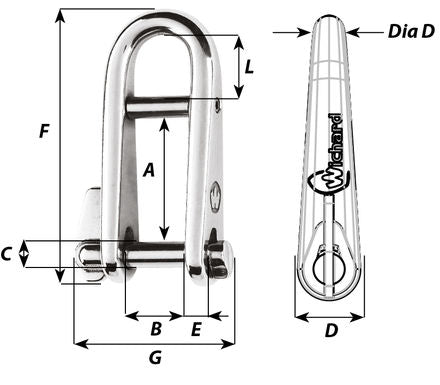

| Specifications | ||
| Materials | 316 stainless steel grade | |
| Working load | 800 kg | 1760 lb |
| Breaking load | 2500 kg | 5510 lb |
| Weight | 123 g | 0.271 lb |
| A | 59 mm | 2 21/64" |
| B | 21 mm | 53/64" |
| C | 8 mm | 5/16" |
| D | 17 mm | 43/64" |
| D diameter | 8 mm | 5/16" |
| E | 6 mm | 15/64" |
| F | 79 mm | 3 7/64" |
| G | 49 mm | 1 59/64" |
| L | 20 mm | 25/32" |
