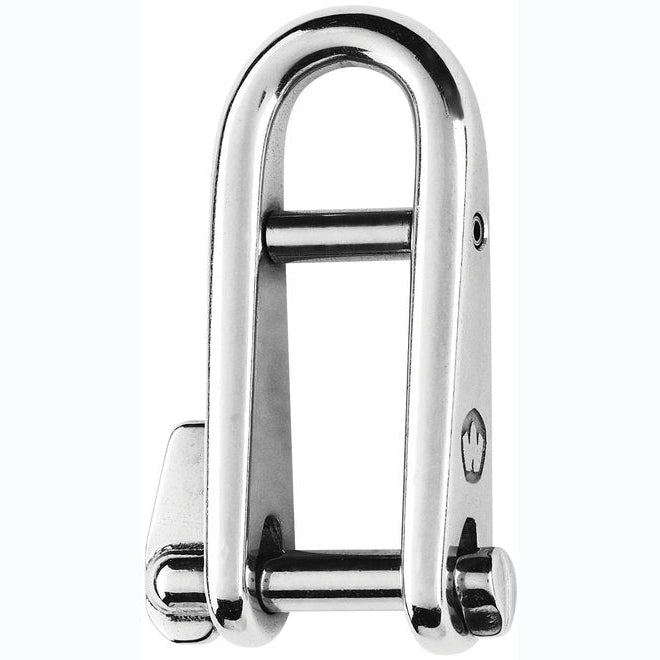

Wichard 3/16" Key Pin Shackle with Bar
Wichard 3/16" Key Pin Shackle with Bar
SKU:W81432
Regular price
$43.40 USD
Regular price
MSRP:$51.06 USD
Sale price
$43.40 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
- Key pin shackle forged in grade 316L stainless steel
- Opening and closing is done simply by rotating the pin half a turn
- No risk to lose the pin as it remains attached
- Outstanding working and breaking loads
| Specifications | ||
|---|---|---|
| Materials | 316 Stainless steel grade |
|
| Working load | 400 kg |
880 lb |
| Breaking load | 1200 kg |
2640 lb |
| Weight | 31 g |
0.068 lb |

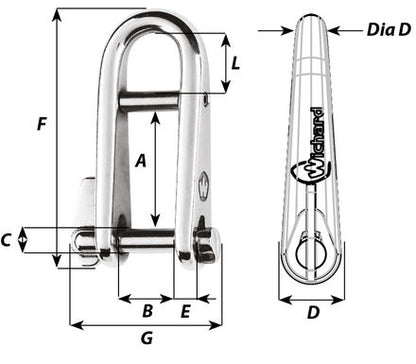

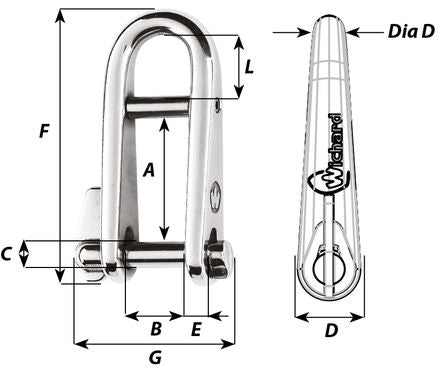

| A | 37 mm |
1 29/64" |
| B | 13 mm |
33/64" |
| C | 5 mm |
13/64" |
| D | 11 mm |
7/16" |
| D diameter | 5 mm |
13/64" |
| E | 4 mm |
5/32" |
| F | 49 mm |
1 59/64" |
| G | 31 mm |
1 7/32" |
| L | 12 mm |
15/32" |
