Wichard

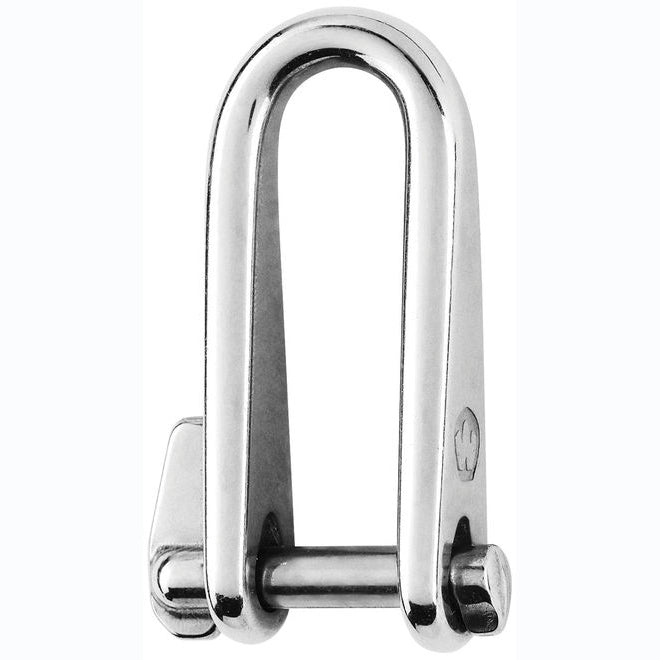

Wichard 1/4" Key Pin Shackle
Wichard 1/4" Key Pin Shackle
SKU:W1433
Regular price
$40.81 USD
Regular price
MSRP:$48.01 USD
Sale price
$40.81 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
- Key pin shackle forged in grade 316L stainless steel
- Opening and closing is done simply by rotating the pin half a turn
- No risk to lose the pin as it remains attached
- Outstanding working and breaking loads

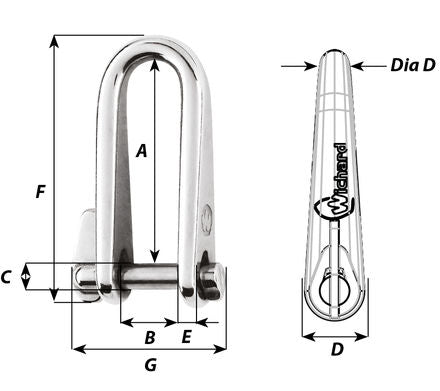

| Specifications | ||
| Materials | 316 stainless steel grade | |
| Working load | 520 kg | 1140 lb |
| Breaking load | 1500 kg | 3300 lb |
| Weight | 48 g | 0.106 lb |
| A | 45 mm | 1 49/64" |
| B | 16 mm | 5/8" |
| C | 6 mm | 15/64" |
| D | 13 mm | 33/64" |
| D diameter | 6 mm | 15/64" |
| E | 4 mm | 5/32" |
| F | 60 mm | 2 23/64" |
| G | 37 mm | 1 29/64" |
