Wichard

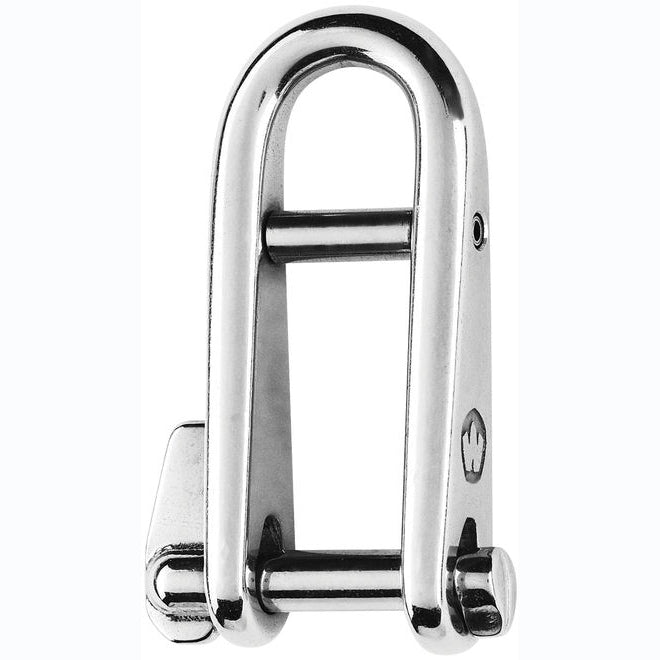

Wichard 1/4" HR Key Pin Shackle with Bar
Wichard 1/4" HR Key Pin Shackle with Bar
SKU:W91433
Regular price
$73.07 USD
Regular price
MSRP:$85.96 USD
Sale price
$73.07 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
- Forged D shackle in HR stainless steel grade (17,4 PH)
- Outstanding working and breaking load
- A HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel

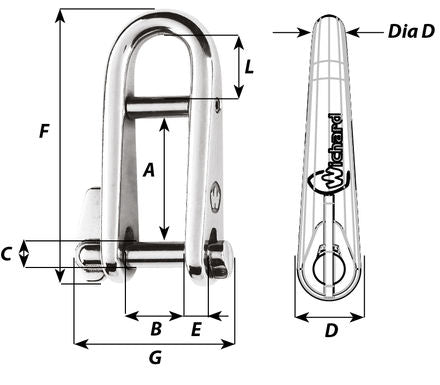

| Specifications | ||
| Materials | 316 stainless steel grade | |
| Working load | 600 kg | 1320 lb |
| Breaking load | 2200 kg | 4850 lb |
| Weight | 53 g | 0.117 lb |
| A | 45 mm | 1 49/64" |
| B | 16 mm | 5/8" |
| C | 6 mm | 15/64" |
| D | 13 mm | 33/64" |
| E | 4 mm | 5/32" |
| F | 60 mm | 2 23/64" |
| G | 37 mm | 1 29/64" |
| L | 15 mm | 19/32" |
