Tylaska Marine Hardware

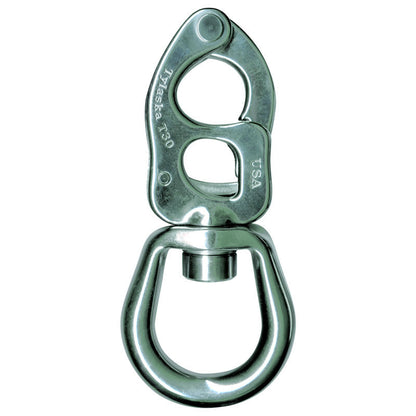

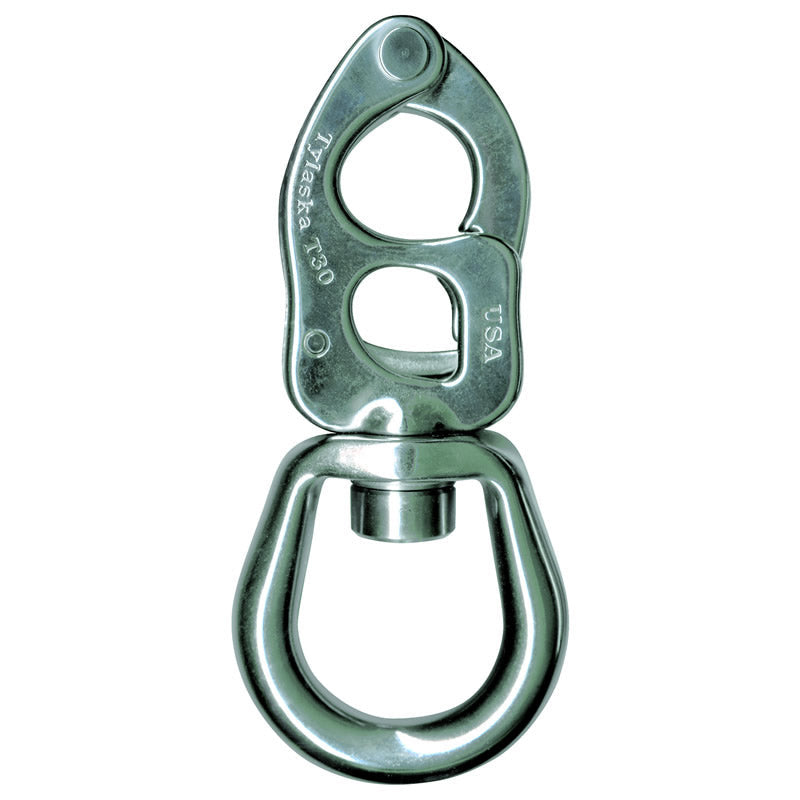

Tylaska T30 Trigger Shackle, Large Bail
Tylaska T30 Trigger Shackle, Large Bail
SKU:TYLT30L
Regular price
$569.96 USD
Regular price
MSRP:$759.94 USD
Sale price
$569.96 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Tylaska T30 is designed for large sailboats that need to support strong loads. With a breaking strength of 30,000 pounds, this shackle can handle sail loads on the largest of sailboats. A number of around-the-world racing teams utilize the T30. The T30 is intended for static load applications only and is NOT approved for lifting applications.
| Specifications | |
| Bail Type | Large |
| A | 1.23" (31.2 mm) |
| B | 1.76" (44.8 mm) |
| C | 7.31" (185.7 mm) |
| D | .74" (18.8 mm) |
| E | .77" (19.6 mm) |
| F | .97" (24.7 mm) |
| Weight | 34.9 oz (989 g) |
| Working Load Limit | 15,000 lbs (6,800 kg) |
| Breaking Strength | 30,000 lbs (13,610 kg) |
