Tylaska Marine Hardware

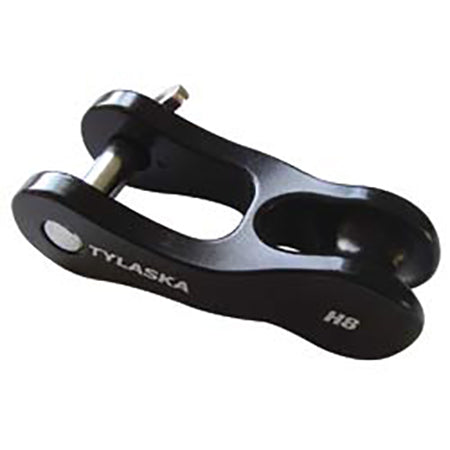

Tylaska H8 Halyard Shackle
Tylaska H8 Halyard Shackle
SKU:TYLH8
Regular price
$126.59 USD
Regular price
MSRP:$168.79 USD
Sale price
$126.59 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Tylaska’s halyard shackles have the highest strength-to-weight ratio of any existing halyard shackle on the market. A captive 17-4PH stainless pin makes for trouble-free operation. The all-metal machined line thimble allows for use as a 2-1 purchase without the wear or melting that occurs with plastic molded thimbles. Lines can also be permanently spliced for a fixed halyard

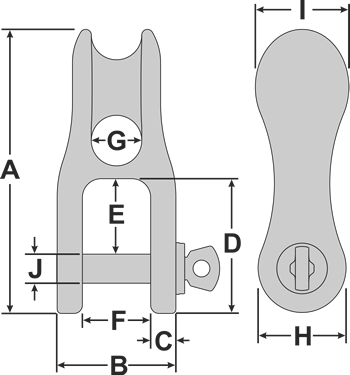

| Specifications | |
| A | 3.16" (80.2 mm) |
| B | 1.32" (33.5 mm) |
| C | .28" (7.1 mm) |
| D | 1.50" (38.2 mm) |
| E | .83" (21.2 mm) |
| F | .76" (19.3 mm) |
| G | .56" (14.3 mm) |
| H | 1" (25.4 mm) |
| I | 1.07" (27.1 mm) |
| J | .31" (8.1 mm) |
| Line Size | 3/8"-1/2" (10-12 mm) |
| Working Load Limit | 4,000 lbs (1,810 kg) |
| Breaking Strength | 8,000 lbs (3,630 kg) |
| Weight | 3.1 oz (87 g) |
