Tylaska Marine Hardware
Tylaska H8 2:1 Split Halyard Shackle (with Sheave)
Tylaska H8 2:1 Split Halyard Shackle (with Sheave)
SKU:TYLH8-2:1-S
Regular price
$185.75 USD
Regular price
MSRP:$247.66 USD
Sale price
$185.75 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Tylaska’s halyard shackles have the highest strength-to-weight ratio of any existing halyard shackle on the market. A captive 17-4PH stainless pin makes for trouble-free operation. The all-metal machined line thimble allows for use as a 2-1 purchase without the wear or melting that occurs with plastic molded thimbles. Lines can also be permanently spliced for a fixed halyard.
The Tylaska Split 2:1 halyard shackle offers snatch block convenience to the popular lightweight offering from Tylaska. These are ideal for quick installation and removal from existing rigging.

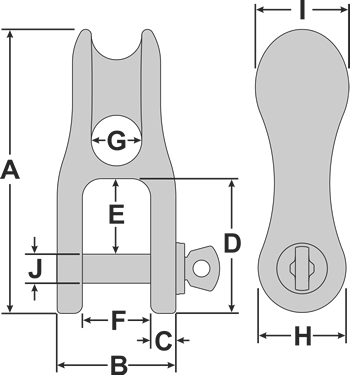

| Specifications | |
| A | 3.31" (84.1 mm) |
| B | 1.32" (33.5 mm) |
| C | .28" (7.1 mm) |
| D | 1.5" (38.2 mm) |
| E | .83" (21.2 mm) |
| F | .76" (19.3 mm) |
| G | .59" (15 mm) |
| H | 1" (25.4 mm) |
| I | 1.24" (31.5 mm) |
| J | .32" (8.1 mm) |
| Line Size | 3/8" - 9/16" (10-14 mm) |
| Working Load Limit | 4,000 lbs (1,810 kg) |
| Breaking Strength | 8,000 lbs (3,630 kg) |
| Weight | 3.8 oz (109 g) |
