Tylaska Marine Hardware

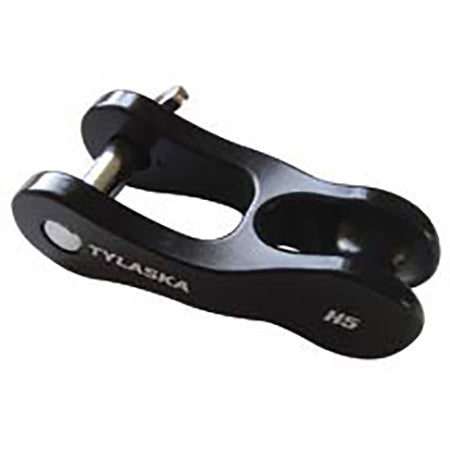

Tylaska H5 Halyard Shackle
Tylaska H5 Halyard Shackle
SKU:TYLH5
Regular price
$117.21 USD
Regular price
MSRP:$156.28 USD
Sale price
$117.21 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Tylaska’s halyard shackles have the highest strength-to-weight ratio of any existing halyard shackle on the market. A captive 17-4PH stainless pin makes for trouble-free operation. The all-metal machined line thimble allows for use as a 2-1 purchase without the wear or melting that occurs with plastic molded thimbles. Lines can also be permanently spliced for a fixed halyard.

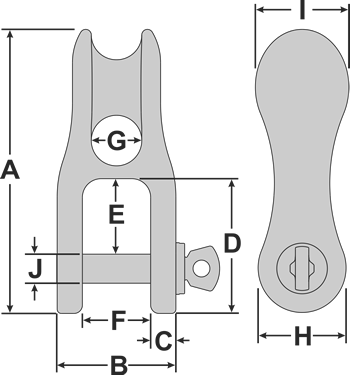

| Specifications | |
| A | 2.89" (73.3 mm) |
| B | 1.07" (27.3 mm) |
| C | .22" (5.6 mm) |
| D | 1.44" (36.5 mm) |
| E | .87" (22 mm) |
| F | .63" (16.1 mm) |
| G | .50" (12.6 mm) |
| H | .88" (22.3 mm) |
| I | .95" (24.1 mm) |
| J | .26" (6.6 mm) |
| Line Size | 5/16"-7/16" (8-11 mm) |
| Working Load Limit | 2,500 lbs (1,130 kg) |
| Breaking Strength | 5,000 lbs (2,270 kg) |
| Weight | 1.8 oz (52 g) |
