Tylaska Marine Hardware
Tylaska H20 Halyard Shackle
Tylaska H20 Halyard Shackle
SKU:TYLH20
Regular price
$258.51 USD
Regular price
MSRP:$344.68 USD
Sale price
$258.51 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Tylaska’s halyard shackles have the highest strength-to-weight ratio of any existing halyard shackle on the market. A captive 17-4PH stainless pin makes for trouble-free operation. The all-metal machined line thimble allows for use as a 2-1 purchase without the wear or melting that occurs with plastic molded thimbles. Lines can also be permanently spliced for a fixed halyard.

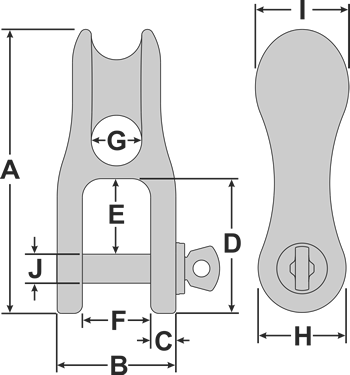

| Specifications | |
| A | 4.84" (122.9 mm) |
| B | 1.84" (46.7 mm) |
| C | .42" (10.7 mm) |
| D | 2.50" (63.5 mm) |
| E | 1.50" (38.1 mm) |
| F | 1" (25.4 mm) |
| G | .75" (19 mm) |
| H | 1.50" (38.1 mm) |
| I | 1.58" (40.1 mm) |
| J | .50" (12.7 mm) |
| Line Size | 1/2"-5/8" (12-16 mm) |
| Working Load Limit | 10,000 lbs (4,540 kg) |
| Breaking Strength | 20,000 lbs (9,070 kg) |
| Weight | 10.5 oz (296 g) |
