Tylaska Marine Hardware

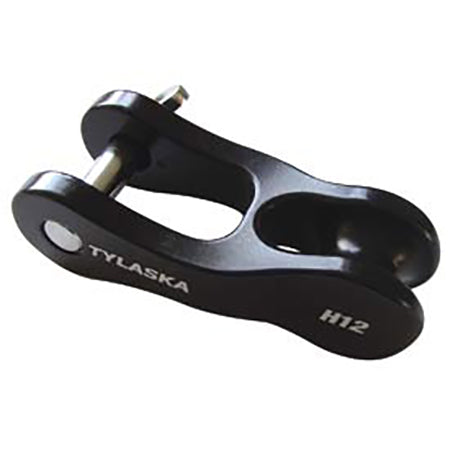

Tylaska H12 Halyard Shackle
Tylaska H12 Halyard Shackle
SKU:TYLH12
Regular price
$159.44 USD
Regular price
MSRP:$212.58 USD
Sale price
$159.44 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Tylaska’s halyard shackles have the highest strength-to-weight ratio of any existing halyard shackle on the market. A captive 17-4PH stainless pin makes for trouble-free operation. The all-metal machined line thimble allows for use as a 2-1 purchase without the wear or melting that occurs with plastic molded thimbles. Lines can also be permanently spliced for a fixed halyard.

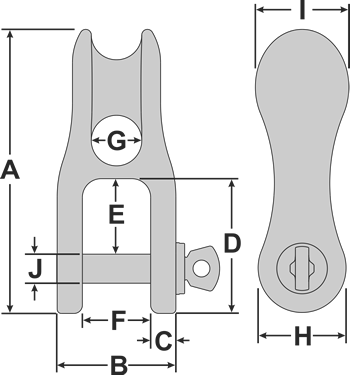

| Specifications | |
| A | 3.74" (95 mm) |
| B | 1.5" (38.1 mm) |
| C | .31" (7.9 mm) |
| D | 1.90" (48.3 mm) |
| E | 1.14" (29 mm) |
| F | .88" (22.4 mm) |
| G | .63" (15.9 mm) |
| H | 1.12" (28.4 mm) |
| I | 1.21" (30.7 mm) |
| J | .38" (9.7 mm) |
| Line Size | 7/16"-9/16" (11-14 mm) |
| Working Load Limit | 6,000 lbs (2,720 kg) |
| Breaking Strength | 12,000 lbs (5,440 kg) |
| Weight | 4.7 oz (132 g) |
