Sta-Lok Terminals, Inc.

Swage Stud, 5/16" & 8mm Wire, 1/2" RH UNF - SWSTM0816R-4 ( #051-08 )

Swage Stud, 5/16" & 8mm Wire, 1/2" RH UNF - SWSTM0816R-4 ( #051-08 )

SWSTM0816R-4

$49.50 USD
MSRP:$58.24 USD $49.50 USD
Sale Available to Order - Contact for Lead Time
Shipping calculated at checkout.

In stock

  • Quantities are subject to availability. We will confirm stock before processing your order. If an item is unavailable, we may suggest a substitute or drop ship the product to you. You are welcome to cancel at no charge if substitution/drop shipping does not suit your needs. Please note cut-to-length rope orders are non-returnable once cut.

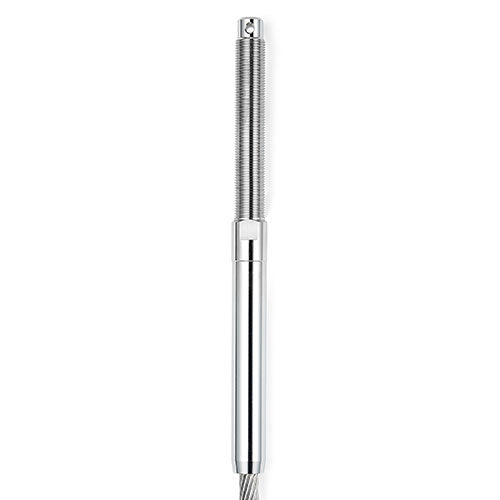

Sta-Lok Swage Studs

  • Suitable for use with rotary & fixed die swaging machines.
  • Manufactured from high specification 316 stainless steel. Rust Free.
  • Use with 1x19, 7 strand and compacted strand wire rope (WRC).
  • Available to fit metric and inch wire ropes.
  • Minimum hole depth 10x wire diameter.
  • Use with open and closed body turnbuckles.
  • Right hand thread only.

*Please note that swage terminals are meant for professional installation only; must be assembled with swage machines. For self-assembly see Sta-Lok Mechanical Fittings. Sailing Services offers swaging services for marine and architectural applications, please contact us for a quote at sales@sailingservices.com.

Material: 316 Stainless Steel
Wire Diameter Inch: 5/16"
Wire Diameter MM: 8 mm
Diagram B: 3 3/16"
Diagram C: 1/2"
Diagram E: 7 3/16"
Diagram F: 3 5/32"
Thread ⌀ : 1/2"
