Sta-Lok Terminals, Inc.

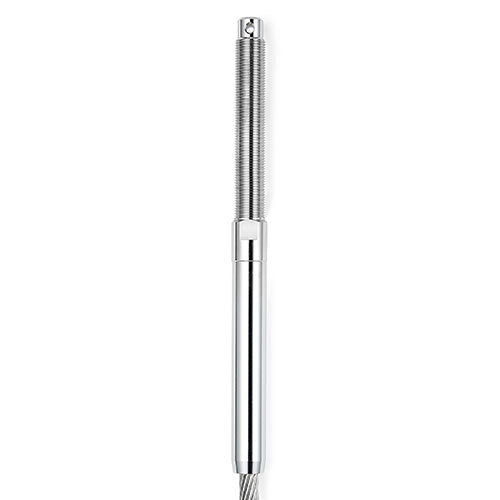

Swage Stud, 3/16" / 5mm Wire x 3/8" RH UNF - SWSTM0512R-4 ( #051-05 )
Swage Stud, 3/16" / 5mm Wire x 3/8" RH UNF - SWSTM0512R-4 ( #051-05 )
SKU:SWSTM0512R-4
Regular price
$19.68 USD
Regular price
MSRP:$23.15 USD
Sale price
$19.68 USD
Unit price
per
Shipping calculated at checkout.
In stock
- Quantities are subject to availability. We will confirm stock before processing your order. If an item is unavailable, we may suggest a substitute or drop ship the product to you. You are welcome to cancel at no charge if substitution/drop shipping does not suit your needs. Please note cut-to-length rope orders are non-returnable once cut.
Couldn't load pickup availability
Sta-Lok Swage Studs
- Suitable for use with rotary & fixed die swaging machines.
- Manufactured from high specification 316 stainless steel. Rust Free.
- Use with 1x19, 7 strand and compacted strand wire rope (WRC).
- Available to fit metric and inch wire ropes.
- Minimum hole depth 10x wire diameter.
- Use with open and closed body turnbuckles.
- Right hand thread only.
*Please note that swage terminals are meant for professional installation only; must be assembled with swage machines. For self-assembly see Sta-Lok Mechanical Fittings. Sailing Services offers swaging services for marine and architectural applications, please contact us for a quote at sales@sailingservices.com.
Wire Diameter Inch: 3/16"
Wire Diameter MM: 5 mm
Diagram B: 2 5/8"
Diagram C: 3/8"
Diagram E: 5 1/4"
Diagram F: 2"
Thread ⌀ : 3/8"
