Sta-Lok Terminals, Inc.

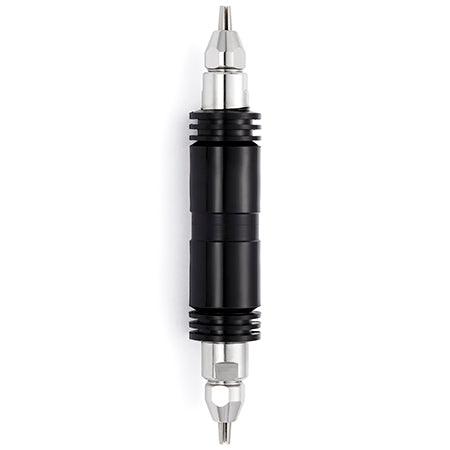

Sta-Lok Insulator Terminal to Terminal for 3/8" Wire - SLIN12

Sta-Lok Insulator Terminal to Terminal for 3/8" Wire - SLIN12

SLIN12

$469.62 USD
MSRP:$552.49 USD $469.62 USD
Sale Available to Order - Contact for Lead Time
Shipping calculated at checkout.
  • Quantities are subject to availability. We will confirm stock before processing your order. If an item is unavailable, we may suggest a substitute or drop ship the product to you. You are welcome to cancel at no charge if substitution/drop shipping does not suit your needs. Please note cut-to-length rope orders are non-returnable once cut.
  • Use on standing rigging to provide Radio Antenna.
  • Stronger than the wire rope.
  • Incorporates Sta-Lok Self fit termination.
  • Quick and easy to install.
  • Packed for 1x19 wire as standard.
  • Manufactured from high specification 316 stainless steel.
  • Different wedges are available to terminate 7 strand and compacted strand wire ropes.

Electrical Properties:Impedance Measurement @15MHz, Capacitance 16pF Resistance 400K, D.C.Leakage Resistance @ 30Kv, Greater than 10 G Ohms

Voltage Proof Test Ð Withstands 30 Kv applied for 2 hours without breakdown. No change in 15 MHz impedance after voltage proof test

Specifications
Wire Diameter Inch: 3/8"

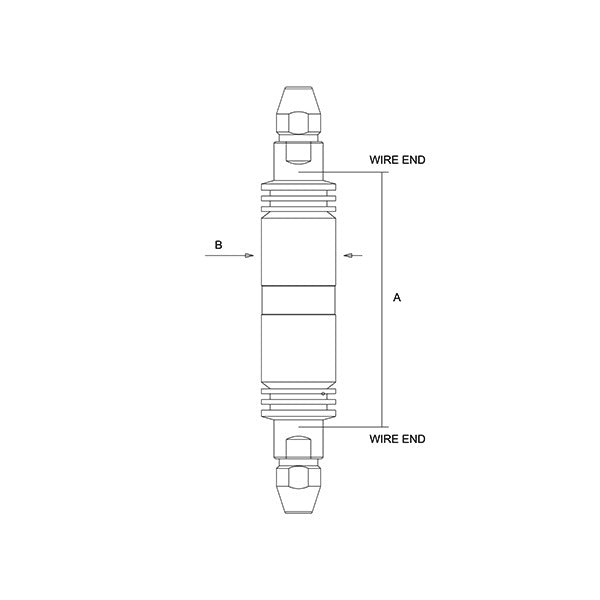

Diagram A: 121 mm (4.764")
Diagram B: 41 mm (1.625")
