Sta-Lok Terminals, Inc.

Sta-Lok Insulator Body for 3/8" Wire - SLINB12

Sta-Lok Insulator Body for 3/8" Wire - SLINB12

SLINB12

$323.38 USD
MSRP:$380.45 USD $323.38 USD
Sale Available to Order - Contact for Lead Time
Shipping calculated at checkout.
  • Quantities are subject to availability. We will confirm stock before processing your order. If an item is unavailable, we may suggest a substitute or drop ship the product to you. You are welcome to cancel at no charge if substitution/drop shipping does not suit your needs. Please note cut-to-length rope orders are non-returnable once cut.
  • Main body of the Sta-Lok Insulator
  • Stronger than the wire rope
  • Variety of end fittings available, sold separately

Electrical Properties:Impedance Measurement @15MHz, Capacitance 16pF Resistance 400K, D.C.Leakage Resistance @ 30Kv, Greater than 10 G Ohms

Voltage Proof Test Ð Withstands 30 Kv applied for 2 hours without breakdown. No change in 15 MHz impedance after voltage proof test

Specifications
Wire Diameter Inch: 3/8"
Wire Diameter MM: 10 mm

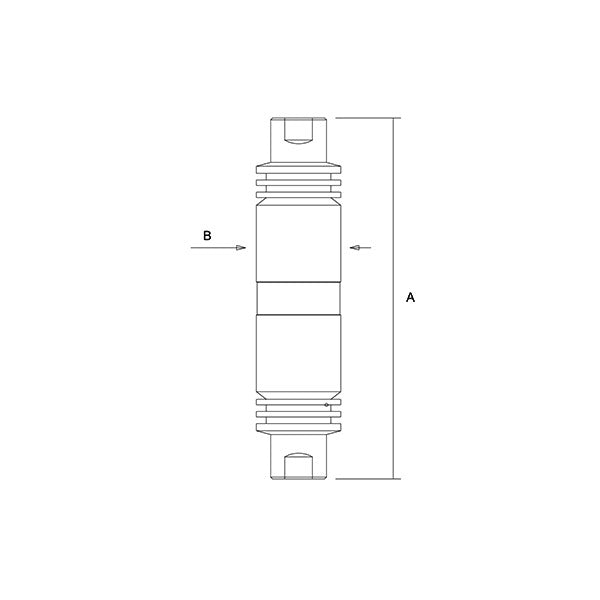

Diagram A: 175 mm (6.875")
Diagram B: 41 mm (1.625")
