Spinlock Rig-Sense Pro Tension Gauge - RGS-PRO/0520

Spinlock Rig-Sense Pro Tension Gauge - RGS-PRO/0520

SPRGS-PRO/0520

$6,300.00 USD
MSRP:$6,300.00 USD $6,300.00 USD
Sale Available to Order - Contact for Lead Time
Shipping calculated at checkout.

Sailing Services is the first to receive the NEW Spinlock RIG-SENSE PRO in the US!

Rig Sense Pro joins the massively successful Rig-Sense range where we find an increasing number of professional users, measuring and recording loads. Increasingly, professional users are needing to demonstrate that rigging has been installed to a determined load and then recorded and certified.
Masts and rigging need to be installed, commissioned and checked to a set of precise loads, both Rod and Wire. Over the lifetime of the mast and rigging continual checking and referencing to these defined loads is also required.

  • Accurate measurement of Ø5 to 20mm cable, Ø-6 to -60 Rod up to 8000kg max tension
  • Handheld, simple to operate with a clear digital display
  • Interfacing with a comprehensive Load-Sense App the data is collected and stored for report writing later

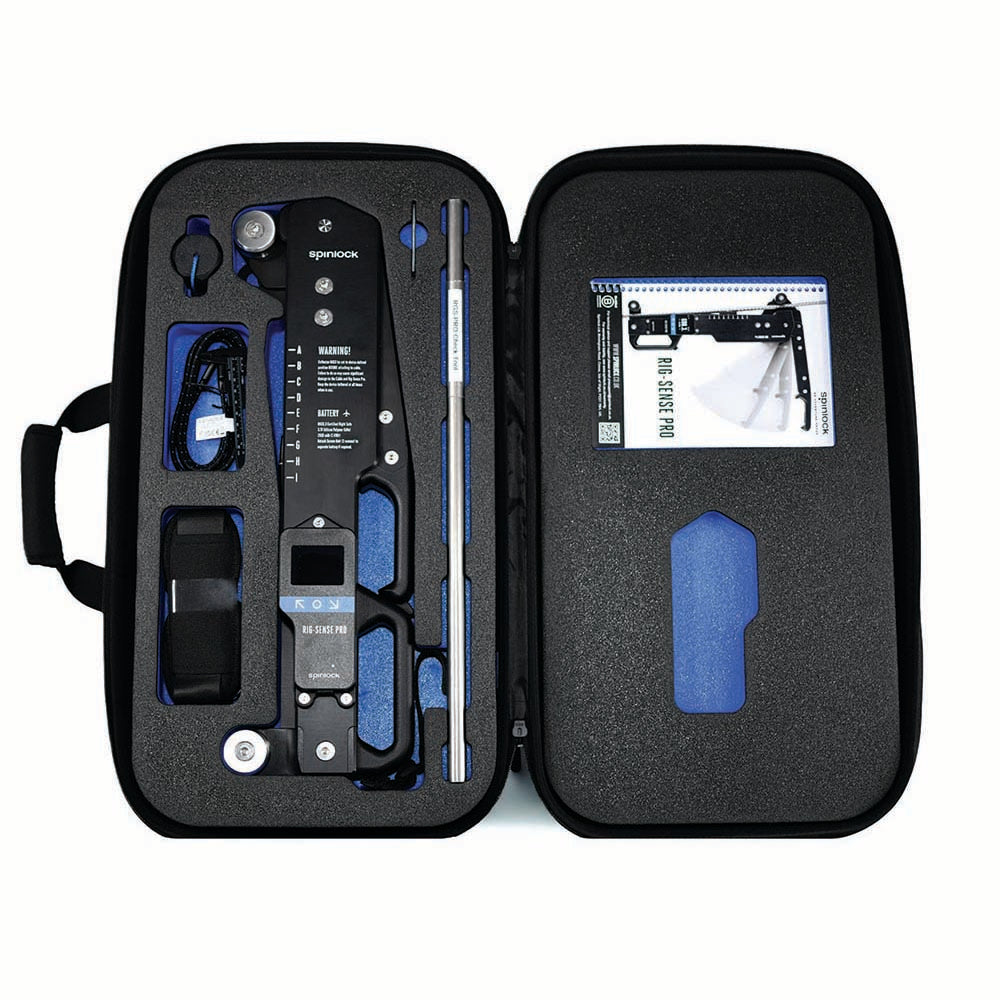

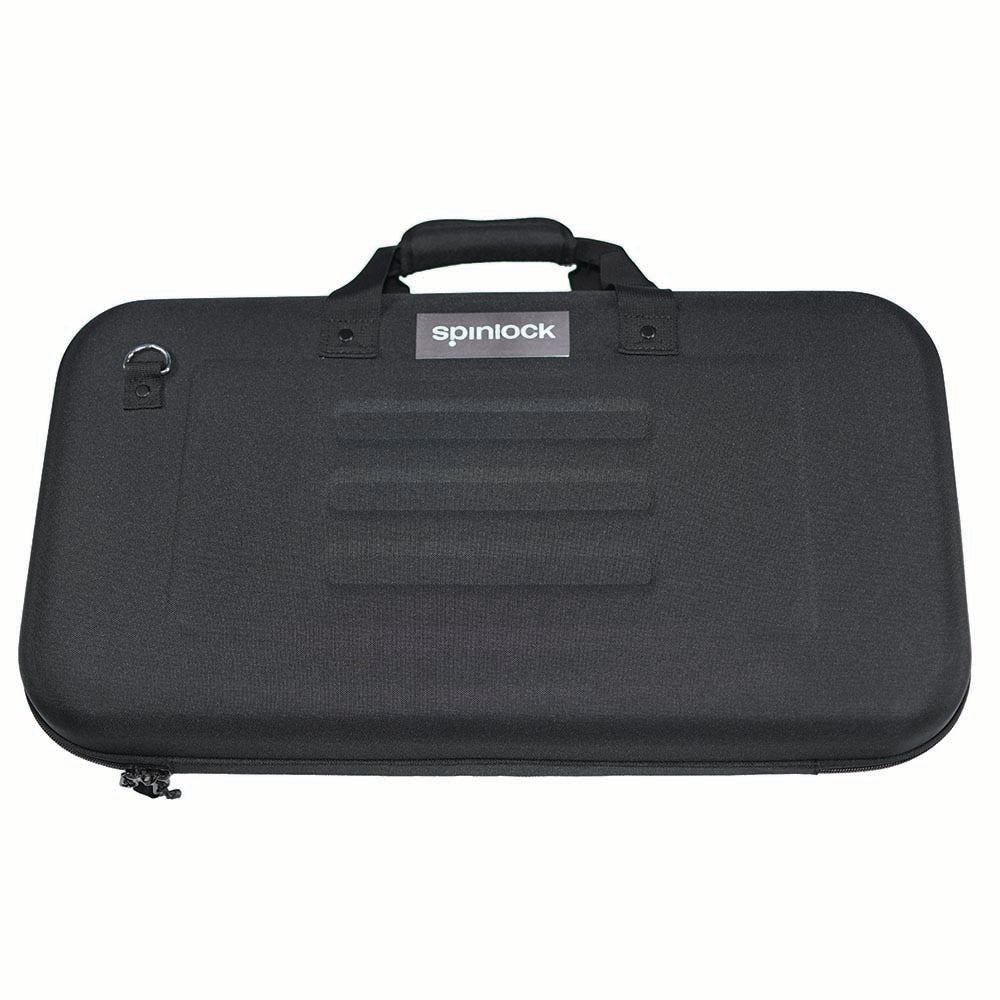

  • Supplied in protective storage and travel case
  • Easy cable size adjustment
  • High Contrast read-out, stores multiple cable calibrations
  • Small cable deflection to minimize tightening effect from bending
  • Cable adjuster increases leverage for smaller cables for increased sensitivity
  • Stainless steel deflector sheaves for low wear
  • Robust marine construction
  • IPX7 waterproof
  • Built-in rechargeable LiPo battery offering 15hr battery life
  • USB-C cable provided for fast charging in 4hrs

Rig-Sense Pro Instructions

SPECIFICATIONS

  • Cable: Ø5 to 20mm
  • Rod: Ø-6 to -60
  • Max Tension: 8000kg
  • Weight: 3.2kg
  • IPX7 waterproof
  • Display: 2.0" Touch enabled LCD
  • Battery Type: 3.7V LiPo 2000 mAh
  • Battery Life: Up to 15hrs
  • Charging: USB-C - Full in 4hrs

LOAD SENSE APP

The Load-Sense App is a mobile companion application connecting to Spinlock Load-Sense and Rig-Sense devices. It lets you connect wirelessly to one or more devices, view load measurements in real time, record data, set alarms and export results. Load-Sense App is available on iOS and Android devices.
Android App
iOS App

OPERATION

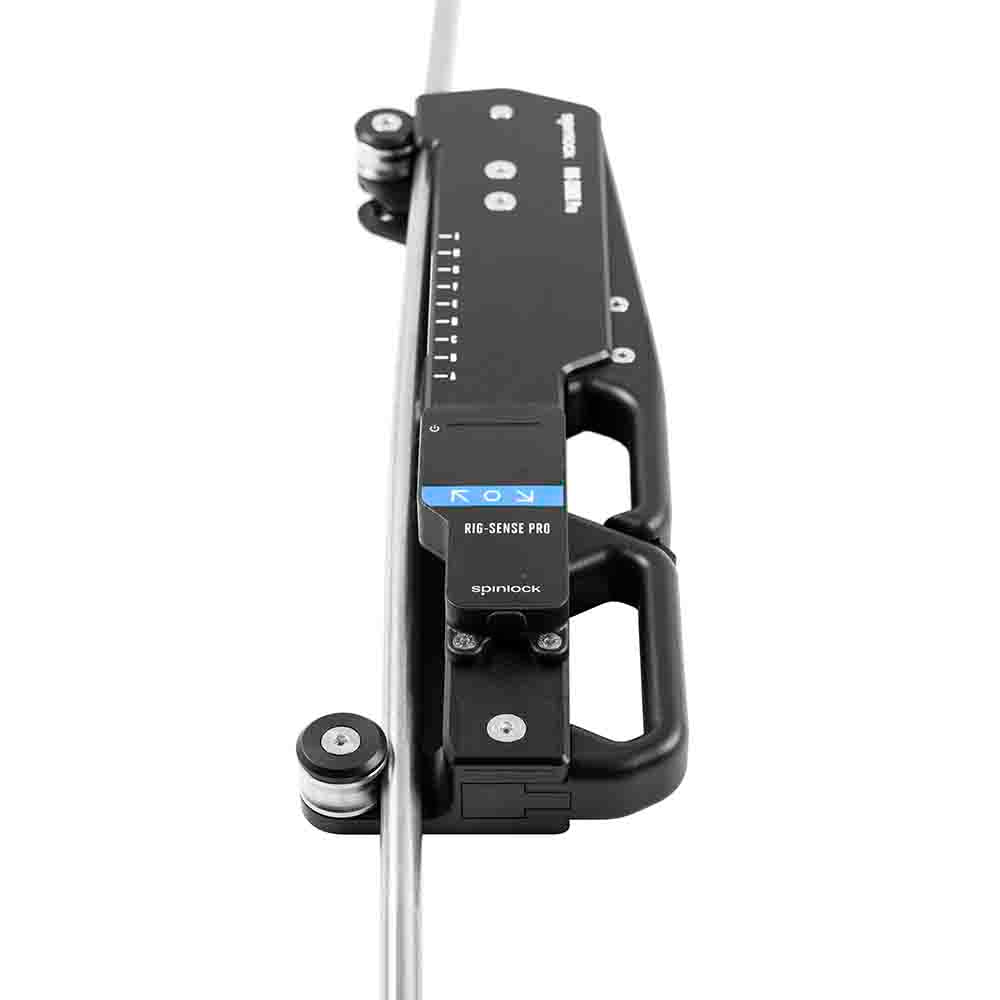

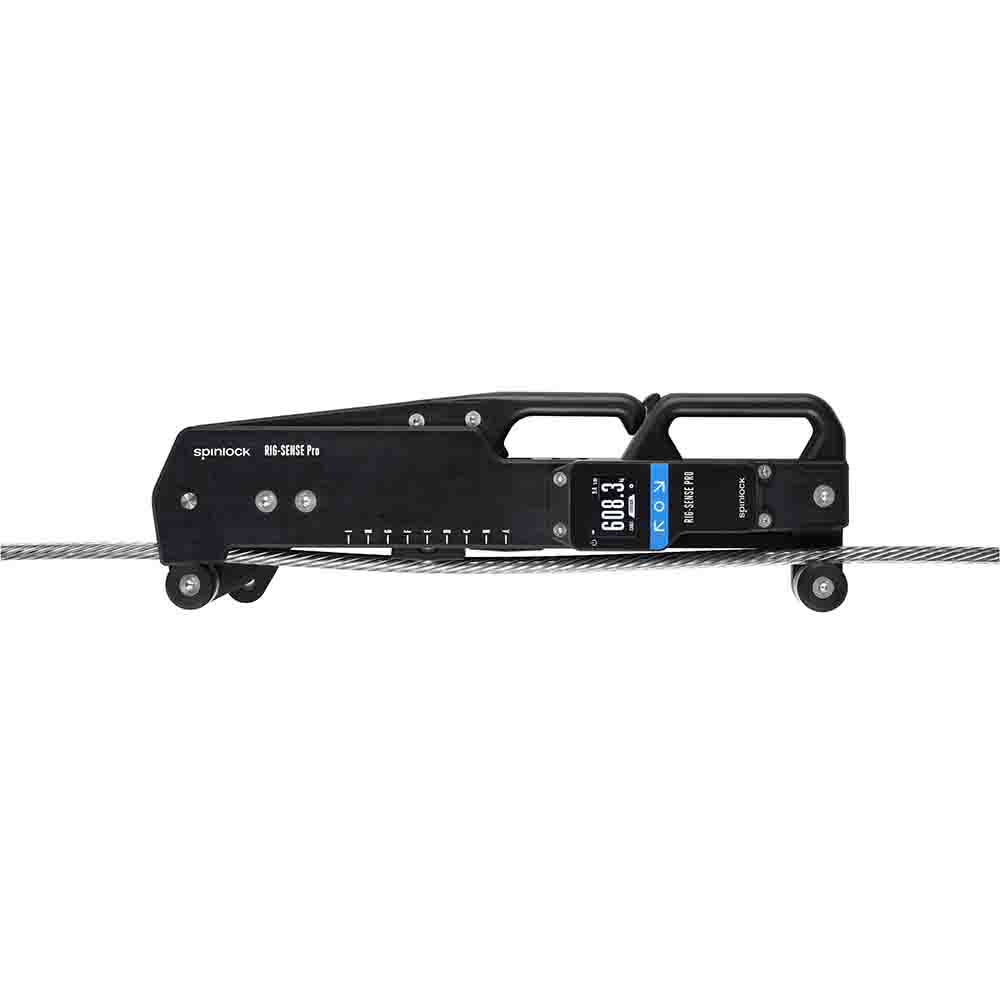

Rig-Sense Pro measures real-time tension of a wide range of cables and rods, and connects to Spinlock's Load-Sense App for remote operation and logging.

Navigate the menu system using the touchscreen and buttons

Operation
  • Select your cable type and diameter from the "CABLE" menu
  • Slide the Deflector to the indicated "A-I" Position

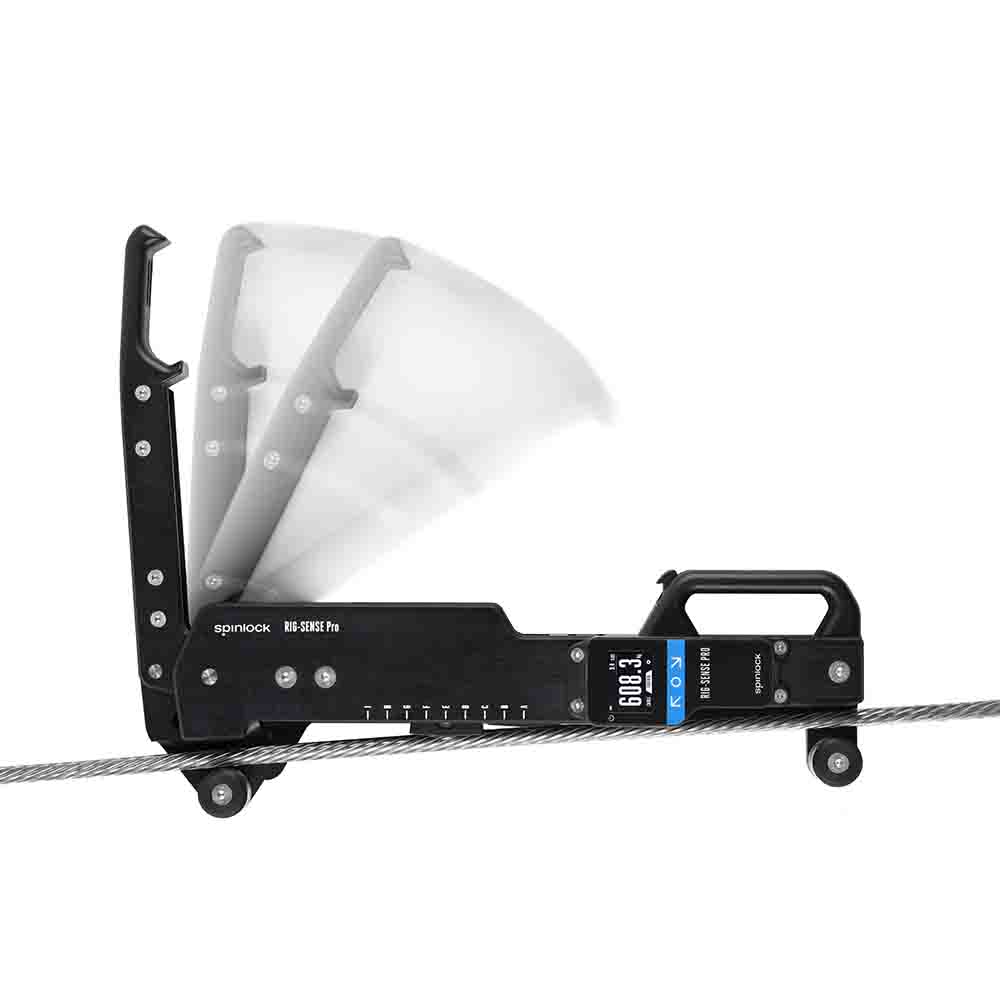

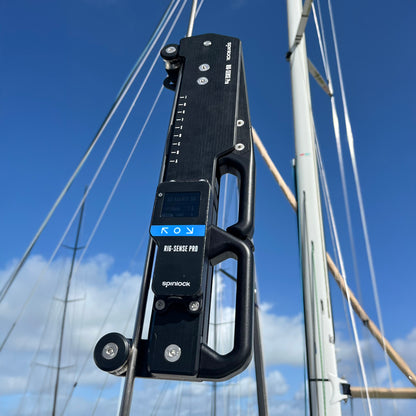

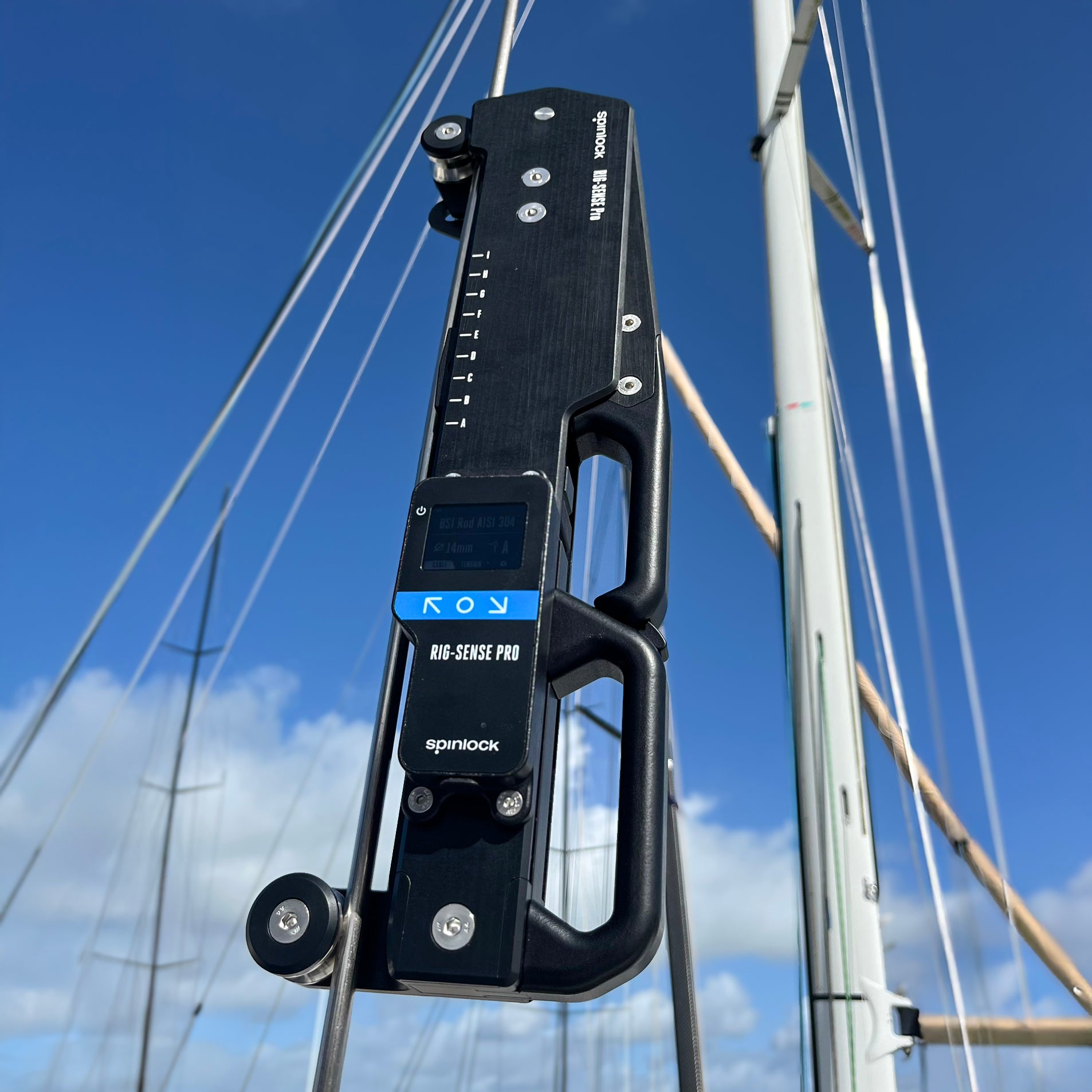

  • Gently clamp the Rig-Sense Pro onto the cable/rod and ensure the handle lock has engaged to start reading tension

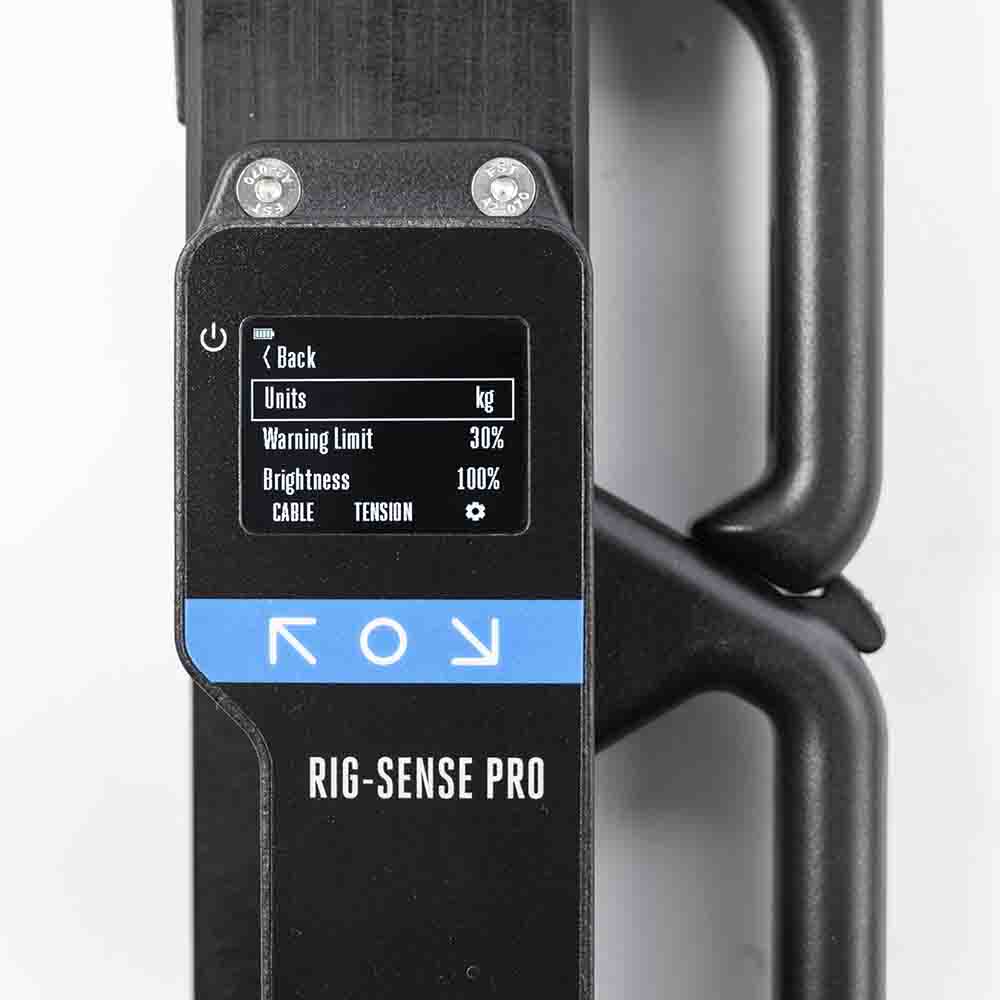

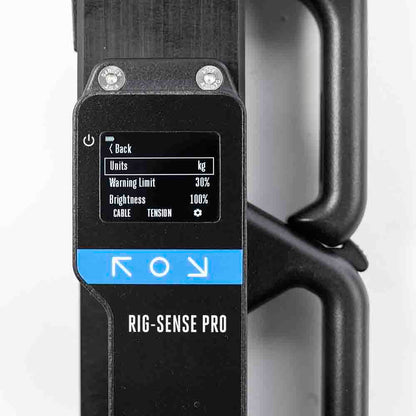

Settings menu for device info and user preference adjustment:
Units, Warning Limit, Brightness, Screen Timeout and Touch Screen

Use Gauge Check mode with supplied Check Tool to provide instant reassurance the Rig-Sense Pro is functioning correctly.

Built-in rechargeable LiPo battery gives up to 15hrs life. USB-C cable provided for fast charging in 4hrs.
