Ronstan

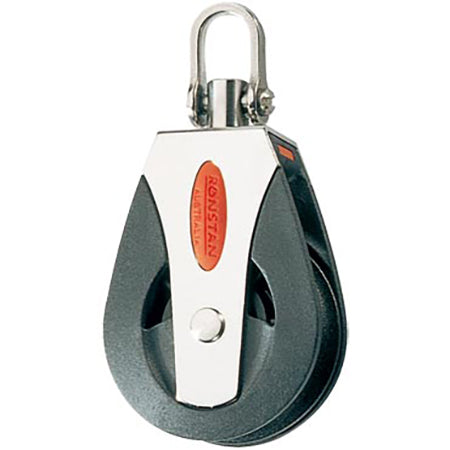

Ronstan 50mm Single Series 50 High Load Block - RF50100HL
Ronstan 50mm Single Series 50 High Load Block - RF50100HL
50mm Single High Load Ball Bearing Pulley
SKU:RF50100HL
MSRP
Regular price
$68.65 USD
Regular price
MSRP:$80.77 USD
Sale price
$68.65 USD
Unit price
/
per
Shipping calculated at checkout.
- Quantities are subject to availability. We will confirm stock before processing your order. If an item is unavailable, we may suggest a substitute or drop ship the product to you. You are welcome to cancel at no charge if substitution/drop shipping does not suit your needs.
Couldn't load pickup availability
Sheaves running on Acetal or Torlon bearings provide high performance & low friction. The 2-stageball bearing system provides consistent performance over the full load range. Captive Lock universal head can be fixed in either of two planes, or free to swivel as required.
A compact and lightweight single pulley. Rated for high working loads. A Nylatron sheave has strong wear resistance and is suitable for use with rope or wire.
| Sheave Dia | 2" |
| Max Rope Dia | 1/2" |
| Max Cable Dia | 3/16" |
| Pin Dia | 3/16" |
| M.W.L | 1650 lb |
| B.L | 3310 lb |
| Weight | 4.1 oz. |
Sheave ⌀ : 2”
(50 mm)
Weight: 4.1 oz (117 g)
Max Line ⌀ : 1/2" (12 mm)
Max Working Load: 1650 lbs (750 kgs)
Breaking Load: 3310 lbs (1500 kgs)
Shackle Pin ⌀ : 3/16” (5 mm)
Weight: 4.1 oz (117 g)
Max Line ⌀ : 1/2" (12 mm)
Max Working Load: 1650 lbs (750 kgs)
Breaking Load: 3310 lbs (1500 kgs)
Shackle Pin ⌀ : 3/16” (5 mm)
