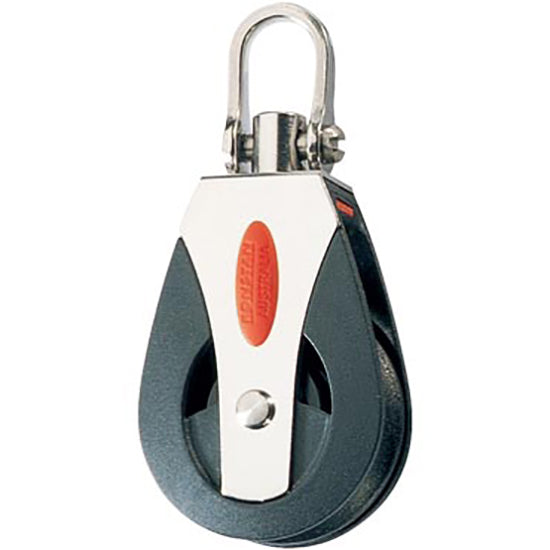

Ronstan 40mm Single Series 40 Ball Bearing Block with Universal Head - RF40100
Ronstan 40mm Single Series 40 Ball Bearing Block with Universal Head - RF40100
40mm Swivel Single Ball Bearing Pulley
SKU:RF40100
MSRP
Regular price
$32.46 USD
Regular price
MSRP:$38.19 USD
Sale price
$32.46 USD
Unit price
/
per
Shipping calculated at checkout.
- Quantities are subject to availability. We will confirm stock before processing your order. If an item is unavailable, we may suggest a substitute or drop ship the product to you. You are welcome to cancel at no charge if substitution/drop shipping does not suit your needs.
Couldn't load pickup availability
Sheaves running on Acetal or Torlon bearings provide high performance & low friction. The 2-stage ball bearing system provides consistent performance over the full load range. Captive Lock universal head can be fixed in either of two planes, or free to swivel as required.
Features
- Low friction Acetal bearing system.
- Lightweight.
- Cheek cut-outs for easy bearing maintenace.
- Captive Lock universal head
- Slotted pin shackle elimiantes fouled lines.
A low friction two stage ball bearing system gives performance and fiction free operation. The pulley has full rotation or can be fixed at 0 degrees or 90 degrees.
Sheave ⌀ : 1-9/16"
(40 mm)
Weight: 2.5 oz (71 g)
Max Line ⌀ : 3/8" (10 mm)
Max Working Load: 770 lbs (350 kgs)
Breaking Load: 2200 lbs (1000 kgs)
Shackle Pin ⌀ : 3/16” (5 mm)
Weight: 2.5 oz (71 g)
Max Line ⌀ : 3/8" (10 mm)
Max Working Load: 770 lbs (350 kgs)
Breaking Load: 2200 lbs (1000 kgs)
Shackle Pin ⌀ : 3/16” (5 mm)
