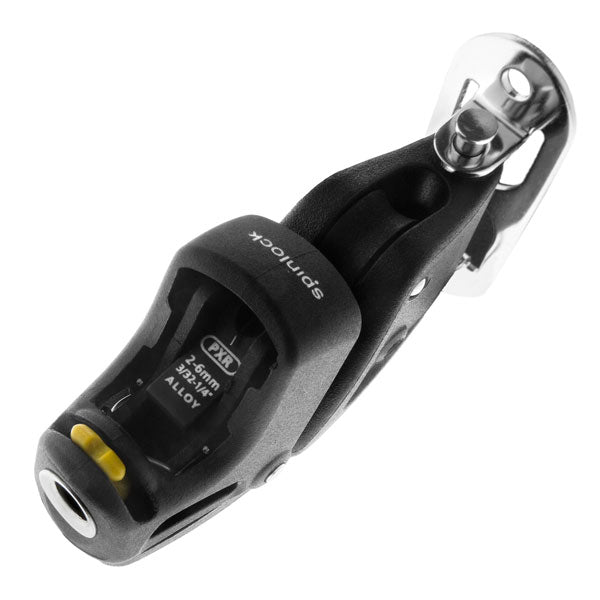

PXR Cam Cleat, 3/32" - 1/4" (2mm-6mm), VP series - PXR0206/VP

PXR Cam Cleat

The easiest cleat to release under load.
Compact roller action cam cleat for easy release of high performance control lines

• Fast precise control for hand tensioned lines
• Roller action ensures easy release under high load
• Hard anodised alloy cam and base
• Ideal for high performance lines
• Micro size for small diameters
• Three stage release control switch
• Ideal for single line spinnaker hoist systems
• Resists accidental re-cleating

Specifications:

PXR0206

• Lines: 3/32" - 1/4" (2mm - 16mm)
• Loads up to 308 lbs (140kg)

PXR0810

• Lines: 8mm - 10mm (5/16" - 3/8")
• Loads up to 200kg (440lbs)

PXR0206/T

• 27mm (1 1/16‚Äù) hole centres - for upgrading dinghy control line cam cleats

PXR0810/T

• 38mm (1 1/2‚Äù) hole centres - for upgrading main sheet swivel cleats and traveller systems on dinghies, keelboats and yachts, and upgrading cam cleats on downhauls, vang and backstay controls

PXR0206/SW

• For single cleat control of jib sheets and dinghy vangs. Preferred by dinghy builders for single line spinnaker hoist systems

PXR0810/SW

• For bigger boat swivel cam cleat control applications

Vertical Pivot 'VP' (2-6mm version only)

• Pivoting sheave and cleat with ultra compact design
• Mount centrally for feeding control lines out to the sides
• Mount under boom for outhaul and gnav controls
• Mount at mast base for catamaran downhauls and vangs
• Easily detached
• Accepts Harken sheave ref: H415

Mast Bracket

• Mast bracket available for PXR0206 and PXR0810

Item	Weight	Fasteners
PXR0206	43g (1.5oz)	2 x M4 (5/32") CSK Head (not supplied)
PXR0206/SW	77g (2.7oz)	3 x M5 (3/16") CSK Head (not supplied)
PXR0206/T	53g (1.9oz)	2 x M4 (5/32") CSK Head (not supplied)
PXR0206/VP	97g (3.4oz)	Bracket mount
PXR0810	84g (2.9oz)	2 x M5 (3/16") CSK Head (not supplied)
PXR0810/SW	124g (4.3oz)	3 x M5 (3/16") CSK Head (not supplied)
PXR0810/T	101g (3.5oz)	2 x M5 (3/16") CSK Head (not supplied)
