J14-212 - Quick Rel Lever 3/16"wire 5/16"pin
J14-212 - Quick Rel Lever 3/16"wire 5/16"pin
SKU:J14-212
Regular price
$102.00 USD
Regular price
MSRP:$120.00 USD
Sale price
$102.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

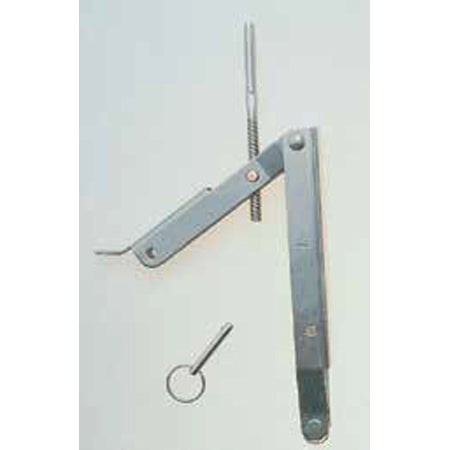

Johnson Large Quick Release Lever
This new quick release lever is similar in principle to our popular 14-205/206 series. It is larger with an ultimate strength of 4000 lbs. It is supplied with either an extender for a terminal eye or a 5/32” or 3/16” wire swage terminal. Comes complete with a quick release pin for instant throw off. It features an over center lever intended for headstays on trailerable boats. Can also be used for inner forestays on larger boats in the 30 ft. range.
| Specifications | |
| Type | Swage Terminal |
| Wire Size | 3/16" |
| Approx. Breaking Strength | 4,000 lbs |
| Pin Diameter | 5/16" |
| Max Adjustment | 2-1/4" |
| Q.R. Throw | 2-5/8" |
| Pin to Pin Closed | Pin to Lug Center 6-1/8” |
| Safe Working Load | 1,600 lbs |
