Harken 16mm Air Fixed Single Block - 404
Harken 16mm Air Fixed Single Block - 404
SKU:H404
MSRP
Regular price
$17.95 USD
Regular price
Sale price
$17.95 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

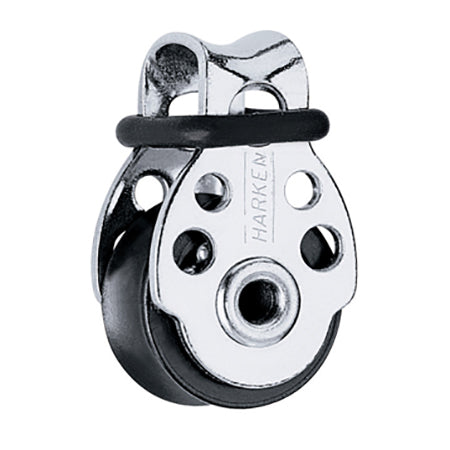

Harken 16mm Air Fixed Single Block
The 16 mm is Harken's smallest block. It is perfect for small synthetic control lines found on high-tech dinghies. The patented bearing system uses stainless steel balls in a captive grooved race and has a 250 lb (113 kg) maximum working load. The 404 uses an O-ring to keep the line in the sheave during intermittent loading.
| Specifications | ||
|---|---|---|
| Sheave Dia. | 5/8 in | 16 mm |
| Length. | 1 1/8 in | 29 mm |
| Weight | .38 oz | 11 g |
| Maximum Line Dia. | 7/32 in | 5 mm |
| Maximum Working Load | 250 lbs | 113 kg |
| Breaking Load | 1200 lbs | 544 kg |
