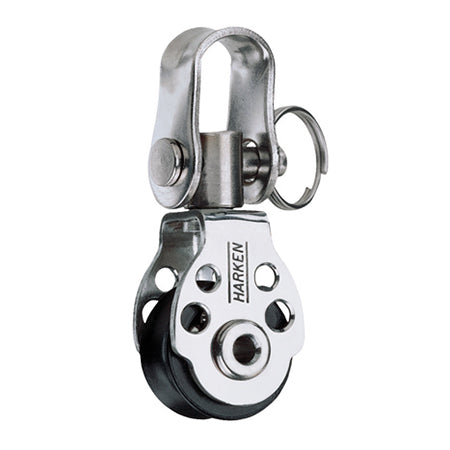

Harken 16mm Air Block with Swivel - 417
Harken 16mm Air Block with Swivel - 417
16mm Swivel Single Ball Bearing Pulley
SKU:H417
MSRP
Regular price
$28.76 USD
Regular price
MSRP:$35.70 USD
Sale price
$28.76 USD
Unit price
/
per
Shipping calculated at checkout.
- Quantities are subject to availability. We will confirm stock before processing your order. If an item is unavailable, we may suggest a substitute or drop ship the product to you. You are welcome to cancel at no charge if substitution/drop shipping does not suit your needs.
Couldn't load pickup availability
The 16 mm is Harken's smallest block. It is perfect for small synthetic control lines found on high-tech dinghies. The patented bearing system uses stainless steel balls in a captive grooved race and has a 250 lb (113 kg) maximum working load.
S.S. Ball Bearing pulley has a fully rotating swivel post with a shackle which provides various options for a fairlead.
Sheave ⌀ : 5/8”
(16 mm)
Weight: 0.63 oz (18 g)
Max Line ⌀ : 7/32” (5 mm)
Max Working Load: 250 lbs (113 kgs)
Breaking Load: 750 lbs (339 kgs)
Shackle Pin ⌀ : 5/32” (4 mm)
Weight: 0.63 oz (18 g)
Max Line ⌀ : 7/32” (5 mm)
Max Working Load: 250 lbs (113 kgs)
Breaking Load: 750 lbs (339 kgs)
Shackle Pin ⌀ : 5/32” (4 mm)
