H50.2STEA24V - WINCH-RADIAL ST ELEC AL 24V VERT (3 BOXES)
H50.2STEA24V - WINCH-RADIAL ST ELEC AL 24V VERT (3 BOXES)
SKU:H50.2STEA24V
MSRPCouldn't load pickup availability

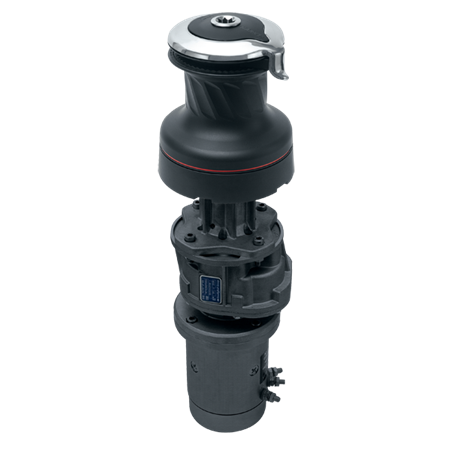

Harken 50 Self-Tailing Radial Electric Winch- 24 Volt Vertical
Electric Radial winches let you relax in luxury and trim any size sail with the push of a button.
The Radial winch drum’s gripping surface is shaped for each winch size and drum material and features diagonal ribs (rather than textured abrasive materials) to maximize gripping power and greatly reduce line wear. The self-tailing mechanism on the winch means that one crew member can quickly and easily trim or raise sails.
High-strength composite roller bearings and bushings reduce friction under load. Load-carrying gears and pins are 17-4 PH stainless steel for strength, corrosion resistance.
Motors attach to central drive shaft and drive through winch gears for two-speed mechanical advantage. Low-power first gear for fast trimming; higher-power second gear for fine-tuning loaded sheets.
Efficient design allows smaller motor size.
Expert Advice Articles: Electric Winches Q&A | Electric Winch Conversion
| Specifications | |
| Gear Ratio - 1 | 2.40 |
| Gear Ratio - 2 | 10.90 |
| Power Ratio -1 | 10.90 |
| Power Ratio - 2 | 50.40 |
| Available Power | Electric Vertical 24V |
| L | 391 mm ( 15 3/8" ) |
| N | 157 mm ( 6 1/8" ) |
| Material | Aluminum |
| Configuration | Self-Tailing |
| Speed | 2 |
| Drum √ò | 110 mm ( 4 5/16" ) |
| Base √ò | 194 mm ( 7 5/8" ) |
| Height | 212 mm ( 8 5/16" ) |
| Weight | 6 kg ( 13.2 lbs) |
| Weight of Winch and Motor | 17.5 kg ( 38.6 lbs ) |
| Motor Weight | 11.5 kg ( 25.4 lbs ) |
| Line Entry Height | 97 mm ( 3 7/8" ) |
| Minimum Line √ò | 8 mm ( 5/16" ) |
| Maximum Line √ò | 14 mm ( 9/16" ) |
| Fastener Circle | 150 mm ( 5 7/8" ) |
| Fasteners | M8 HH, M8 SH mm or 5/16" SH |
| Number of Fasteners | 5 |
