H35.2STEA24HLM - WINCH-RADIAL 2 SPD ELEC AL HORIZ LEFT 24V W/DFCB

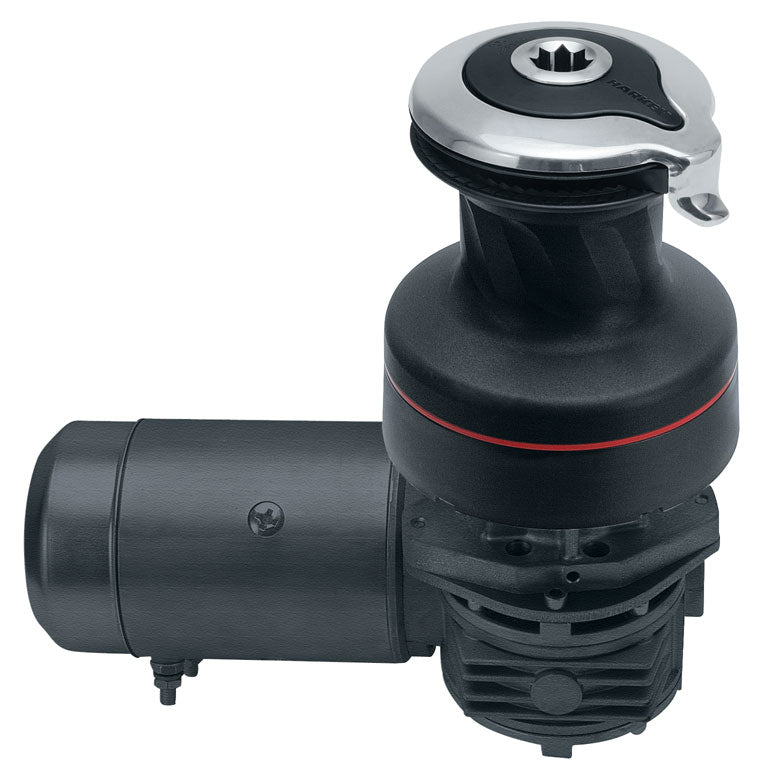

Harken 35 Self-Tailing Radial Electric Winch- 24 Volt Horizontal, Left Mount

Electric Radial winches let you relax in luxury and trim any size sail with the push of a button.

The Radial winch drum’s gripping surface is shaped for each winch size and drum material and features diagonal ribs (rather than textured abrasive materials) to maximize gripping power and greatly reduce line wear. The self-tailing mechanism on the winch means that one crew member can quickly and easily trim or raise sails.

High-strength composite roller bearings and bushings reduce friction under load. Load-carrying gears and pins are 17-4 PH stainless steel for strength, corrosion resistance.

Motors attach to central drive shaft and drive through winch gears for two-speed mechanical advantage. Low-power first gear for fast trimming; higher-power second gear for fine-tuning loaded sheets.

Efficient design allows smaller motor size.

Each electric winch requires one control box, one circuit breaker, and two analog switches or one Digital System Switch. All new electric Radial and Performa electric winches are supplied with the appropriate dual-function control box. For replacement or retrofit control boxes, contact Harken.
