Harken, Inc. / MPN: 2759

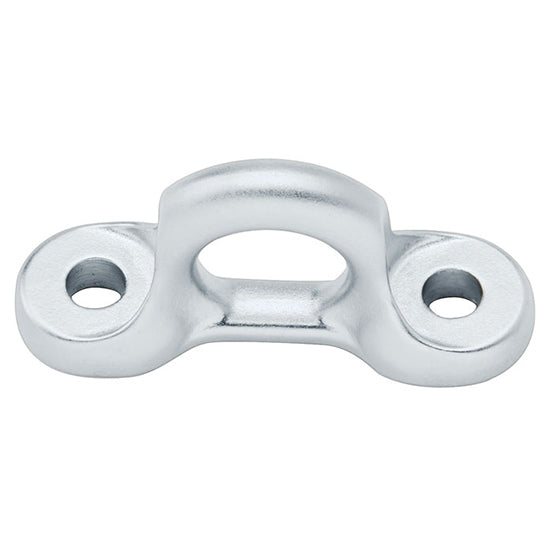

H2759 - SB Cast Padeye Bail
H2759 - SB Cast Padeye Bail
SKU:H2759
Regular price
$15.95 USD
Regular price
MSRP:$18.05 USD
Sale price
$15.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Padeyes are great for mounting blocks and are also used as attachment points for staysails, reefing blocks, and hundreds of other items. The 2759 is 316 cast stainless steel.
| Specifications | ||
| A | 2 1/4" | 56 mm |
| B | 3/4" | 18 mm |
| C | 1 1/2" | 38 mm |
| E | 1" | 26 mm |
| F | 9/16" | 15 mm |
| G | 5/8" | 16 mm |
| Weight | 1.3 oz | 38 g |
| Maximum Working Load | 2550 lb (Angle 1) 2392 lb (Angle 2) 2450 lb (Angle 3) | 1156 kg (Angle 1) 1086 kg (Angle 2) 1111 kg (Angle 3) |
| Breaking Load | 5100 lb (Angle 1) 4784 lb (Angle 2) 4900 lb (Angle 3) | 2313 kg (Angle 1) 2172 kg (Angle 2) 2222 kg (Angle 3) |
| Fasteners | 1/4" | 6 mm |
