Schaefer Marine / MPN: 10-92-UC
Genoa Lead, 1 1/4"x3/16"(32x5mm) Lined - #10-92-UC
Genoa Lead, 1 1/4"x3/16"(32x5mm) Lined - #10-92-UC
Special Order
SKU:SCH10-92-UC
Regular price
$983.07 USD
Regular price
MSRP:$1,092.30 USD
Sale price
$983.07 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

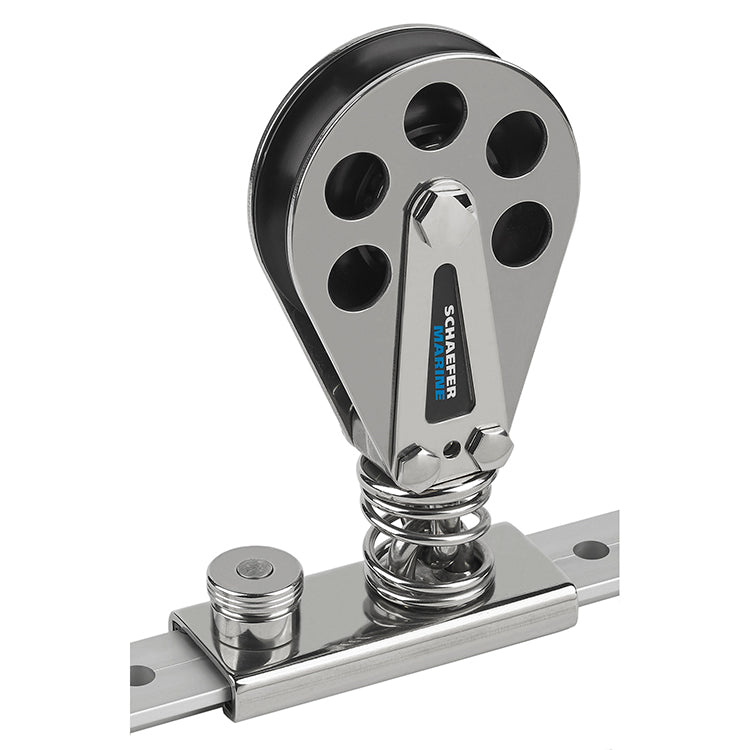

Stand up spring block for 1-1/4" T-Track. Universal Circuit "UC" Aluminum Ball Bearing Sheave with a Nomex/Teflon bearing. Stainless Steel cheeks and stainless steel slider ensure reliability. Polyethylene liner and pin stop allow for easy adjustment.
Track Size 1-1/4" x 3/16" (32 mm x 5 mm)
Boat Size Up To LOA 45', (11.5 m)
Sheave Dia. 3-1/4" (83 mm)
Max Line 5/8" (16 mm)
L 4" (102 mm)
W 1-9/16" (39 mm)
H 6-3/32" (155 mm)
Bearing Height 3-1/8" (80 mm)
SWL 3750 lbs. (1700 kg)
Weight 1 lb. 14 oz. (850 g)
Track Size 1-1/4" x 3/16" (32 mm x 5 mm)
Boat Size Up To LOA 45', (11.5 m)
Sheave Dia. 3-1/4" (83 mm)
Max Line 5/8" (16 mm)
L 4" (102 mm)
W 1-9/16" (39 mm)
H 6-3/32" (155 mm)
Bearing Height 3-1/8" (80 mm)
SWL 3750 lbs. (1700 kg)
Weight 1 lb. 14 oz. (850 g)
