Wichard 5/32" (4mm) Self Locking D Shackle - 1201W
Wichard 5/32" (4mm) Self Locking D Shackle - 1201W
Wichard 5/32” Self-Lock D Shackle
SKU:W1201
MSRP
Regular price
$14.03 USD
Regular price
MSRP:$16.50 USD
Sale price
$14.03 USD
Unit price
/
per
Shipping calculated at checkout.
- Quantities are subject to availability. We will confirm stock before processing your order. If an item is unavailable, we may suggest a substitute or drop ship the product to you. You are welcome to cancel at no charge if substitution/drop shipping does not suit your needs.
Couldn't load pickup availability

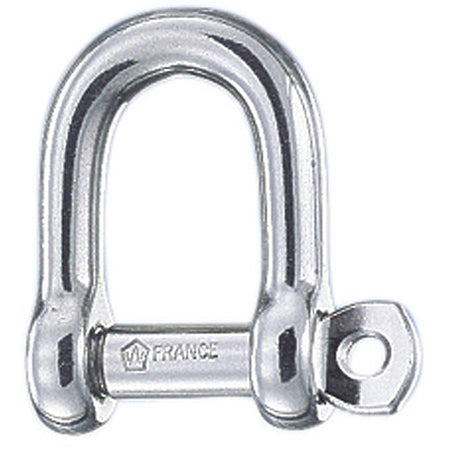

Self-locking D shackle forged in grade 316L stainless steel. The pin is locked into one of the indentations; no risks of it getting loose due to vibrations.
A 316L stainless steel Forged D shackle with a 5/32” dia. screw pin. The screw pin self locks when it is fully engaged.
| Specifications | ||
| Materials | 316 Stainless Steel Grade | |
| Working Load | 700 lbs | 320 kg |
| WLL | 300 lbs | 140 kg |
| Breaking Load | 1540 lbs | 700 kg |
| Weight | 0.015 lbs | 7 g |

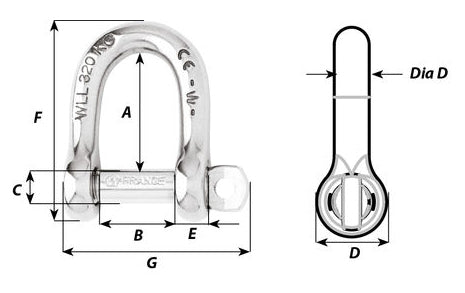

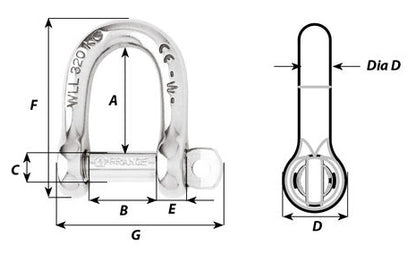

| A | 33/64" | 13 mm |
| B | 5/16" | 8 mm |
| C | 5/32" | 4 mm |
| D | 5/16" | 8 mm |
| D Diameter | 5/32" | 4 mm |
| E | 1/8" | 3 mm |
| F | 29/32" | 23 mm |
| G | 25/32" | 20 mm |
