Wichard
Wichard 3/16" (5mm) Self Locking Bow Shackle - 1242W
Wichard 3/16" (5mm) Self Locking Bow Shackle - 1242W
Wichard 3/16” Self-Lock Bow Shackle
SKU:W1242
MSRP
Regular price
$19.07 USD
Regular price
MSRP:$22.43 USD
Sale price
$19.07 USD
Unit price
/
per
Shipping calculated at checkout.
- Quantities are subject to availability. We will confirm stock before processing your order. If an item is unavailable, we may suggest a substitute or drop ship the product to you. You are welcome to cancel at no charge if substitution/drop shipping does not suit your needs.
Couldn't load pickup availability

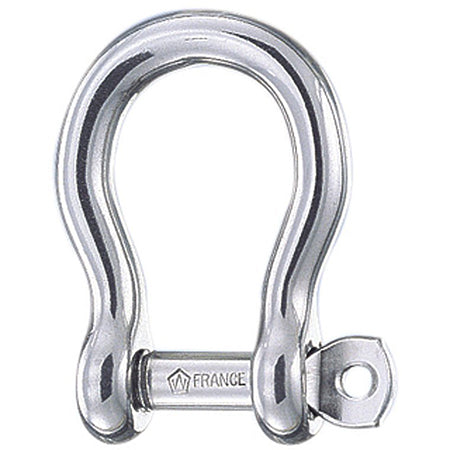

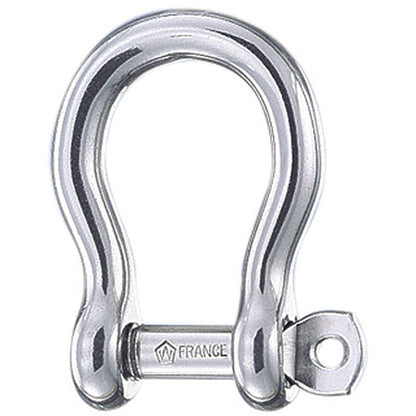

Self-locking Bow shackle forged in grade 316L stainless steel. The pin is locked into one of the indentations; no risks of it getting loose due to vibrations.
A 316L stainless steel Forged Bow shackle with a 3/16” dia. screw pin. The screw pin self locks when it is fully engaged.
| Specifications | ||
| Materials | 316 Stainless Steel Grade | |
| Working Load | 880 lbs | 400 kg |
| WLL | 440 lbs | 200 kg |
| Breaking Load | 2200 lbs | 1000 kg |
| Weight | 0.037 lb | 17 g |

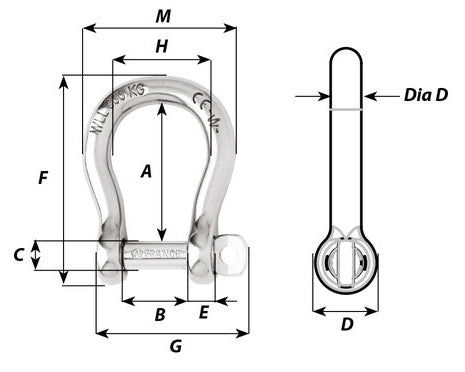

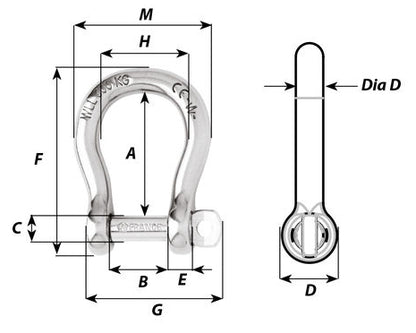

| A | 29/32" | 23 mm |
| B | 25/64" | 10 mm |
| C | 13/64" | 5 mm |
| D | 25/64" | 10 mm |
| D Diameter | 13/64" | 5 mm |
| E | 5/32" | 4 mm |
| M | 63/64" | 25 mm |
