We recently worked with All At Sea Magazine to share insights on halyard wraps and how to prevent them. This article was originally published in All At Sea Magazine, based on notes and technical input provided by Brooks Jones, Owner and Founder of Sailing Services.

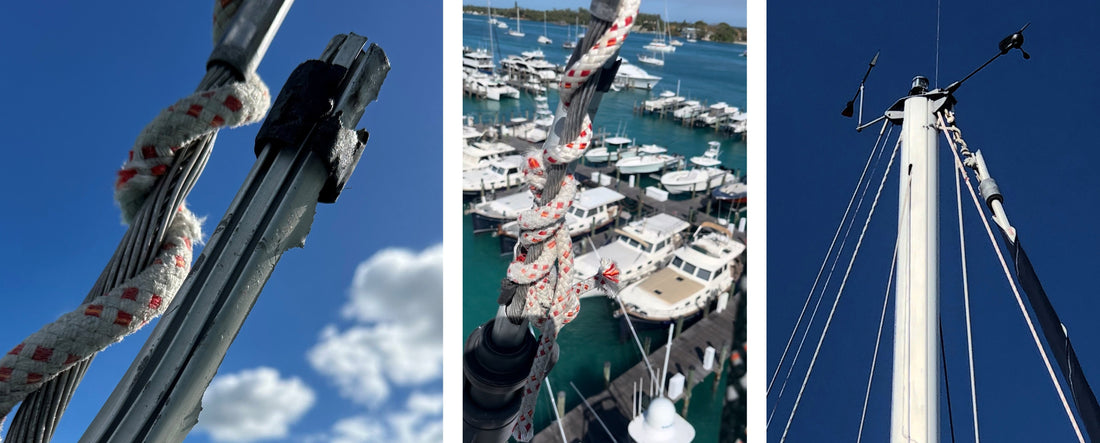

If you’ve ever watched a jib furler twist itself into destruction, you’ve probably seen a halyard wrap. It’s one of the most common—and most expensive—failures we see in the rigging world. The good news? It’s almost always preventable.
These notes apply to the most popular manual jib furling systems—Harken, Profurl, Selden, Facnor, and Schaefer. These systems use a drum for the furling line and a halyard swivel hoisted to the top of the mast.
(We’re not talking about the internal-halyard systems like CDI, Famet, or some Brazilian furlers where the halyard is contained inside the foil.)
Start With the Halyard Lead
Most manufacturers publish excellent installation manuals— but who really reads them?
If you want to know whether your rigger understands furling systems, ask about the halyard lead angle. This is the single most important factor in preventing wrap.
The swivel must sit far enough below the masthead sheave so the halyard leads cleanly into the mast. If that angle is too shallow, the halyard wraps around the forestay instead of turning with the swivel. That’s how the dreaded halyard wrap begins—and it can destroy the forestay in seconds. A properly placed halyard restrainer is your insurance policy.
Keep the Leads Square
Make sure the furling line leads squarely into and out of the drum. If the angle is off, the line will pile up, bunch, and jam as the sail unfurls.
Run the line aft through low-friction blocks and finish it on a horn cleat, not a cam cleat. A horn cleat won’t surprise you by letting go under load.
Tune for Tension
Add a turnbuckle at the base of the forestay to fine-tune mast position and stay tension.
Reducing forestay sag improves sail shape and makes furling smoother.
Remember: a loose forestay flexes the foil sections like a hinge with every revolution. Tight, well-aligned connections last longer and furl more cleanly.
Know When to Stop
If the sail suddenly resists furling—stop immediately.
Once a halyard wrap starts, every extra turn increases torque and damage. Look up, clear the tangle, and only then continue. It can’t be said enough.
Give Yourself Some Slack
A few extra wraps of line on the drum are a good thing. They add mechanical advantage when starting the furl and give you room to accommodate a larger headsail later.
If furling feels unusually heavy, walk forward and pull the line right at the drum exit. You’ll quickly see whether the culprit is the lead or the drum.
Changing Headsails
When swapping sails with different luff lengths, use a pennant to keep the swivel at the same height. That maintains the original, correct halyard angle into the mast sheave—the “sweet spot” that prevents wrap.
Wisdom From the Sail Loft
Talk to your sailmaker.
A UV strip on the leech protects the sail when furled, and a foam luff insert keeps the sail’s shape when partially rolled. Both reduce strain on the furling system.
Hardware Choices That Matter
Skip snap shackles at the head and tack. Sail changes on a furler are rare, and snap shackles just add weight and cost.
Soft shackles work beautifully—lighter, cheaper, and easier to open.
Sailing Services, Inc. also recommends plastic bearings in the swivel and drum. “Rust never sleeps,” as Brooks likes to say.
And don’t forget full toggle action at both ends of the forestay connection—side-to-side and fore-and-aft. That freedom of movement prevents binding and fatigue.
Looking Ahead
Technology will soon give us tension readouts for both the forestay and the furling line. Until then, the best tools remain good rig tuning, clean leads, and a careful hand on the furling line.
Bottom Line:
Get the halyard lead right, keep the system tight, and don’t force the furl. A little attention up front prevents big damage later—and keeps you sailing safely.
